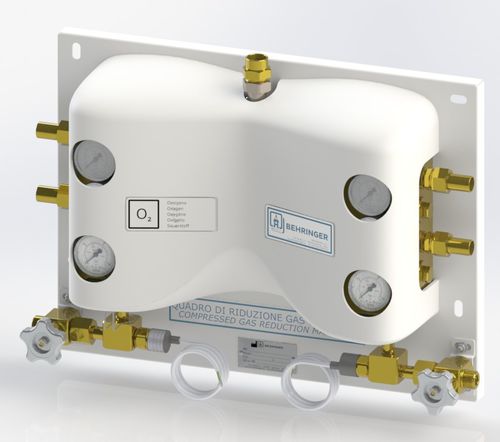

High flow rate control panel for oxygen, with automatic change-over and available both with reset and automatic; calibrated at 9 bar at the outlet, it reaches a maximum flow rate of 135 mc / h in oxygen in the manual reset version, 110 mc / h in the fully automatic version; it is available with pressure switch or transducer; consisting of two double reduction lines, it guarantees continuous supply with high pressure stability; complete with manifolf exaust valve; the outlet connector is for a Ø 22 mm welded pipe; the panel is completed by a steel plate and a white polycarbonate cover that is light and practical to install.
N.2 high pressure reducers 451 with brass piston and pressure regulation with stainless steel threaded dowel.
N.2 low pressure reducers 451 in brass and pressure regulation with stainless steel threaded dowel.
N.4 overpressure relief valves incorporated in the brass reducers.
N.2 specific gas inputs.
N.2 high pressure bleed valves with conveyable exhaust.
N.1 outlet with fitting for Ø22 mm welded pipe.
N.2 shut-off valves for High Pressure in brass.
N.2 Low Pressure shut-off valves for maintenance.
N.2 brass non-return valves.
N.2 High Pressure gauges, 0-315 bar scale, class 2.5.
N.2 low pressure gauges, scale 0-16 bar, class 2.5.
N.2 sintered bronze filters (filtration degree N.2 pressure switches or high pressure transducers
N.1 automatic shuttle in the fully automatic version
Stainless steel springs.
EPDM membranes.
Seal seat in NYLON.
EPDM O-Ring.
NYLON / TEFLON gaskets.
Cover in white PETG.
Powder coated metal fixing plate.
EN ISO 10524-2 | EN ISO 7396-1 | EN ISO 15001
