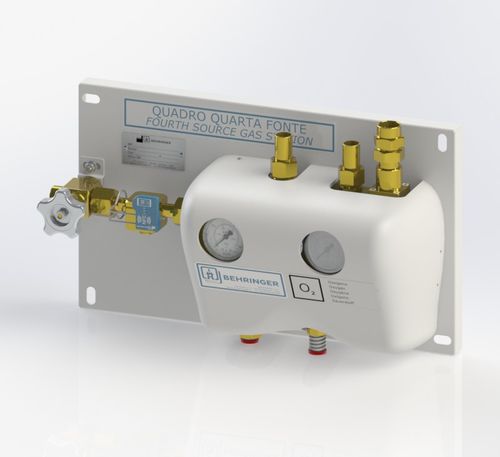

Wall-mounted medical gas supply unit ECO/4 EVO

Emergency switchboard, 4th source, for medical gases, used as an emergency input to power the line in case of emergency; to be installed outside the control unit and convenient for vehicles; equipped with a ramp purge valve; composed of a double-head reduction line, it guarantees a continuity of supply with high pressure stability; the picture is completed by a powder-coated steel plate and a white polycarbonate cover that is light and practical to install. No. 1 451 high pressure reducer in CW614N brass and pressure regulation with stainless steel threaded dowel. No. 1 451 low pressure reducer in CW614N brass and pressure regulation with stainless steel threaded dowel. No. 2 overpressure relief valves incorporated in CW614N brass reducers. No. 1 specific inlet based on the gas used. No. 1 overpressure bleed valve with conveyable exhaust. No. 1 outlet with connector for Ø22 mm welded pipe. No. 1 shut-off valve for high pressure in CW614N brass. No. 1 low pressure shut-off valve for maintenance. No. 1 non return valve in CW614N brass. No. 1 high pressure gauge, 0-315 bar scale, class 2.5. No. 1 low pressure gauge, 0-16 bar scale, class 2.5. No. 1 sintered bronze filter (degree of filtration Stainless steel springs. VITON membrane for O2, NBR for other gases. NYLON seat for O2, TEFLON for other gases. VITON O-Ring for O2, NBR for other gases. NYLON gaskets. Cover in WHITE POLYCARBONATE. Fixing plate with powder coated finish. EN ISO 10524-2 | EN ISO 7396-1 | EN ISO 15001
