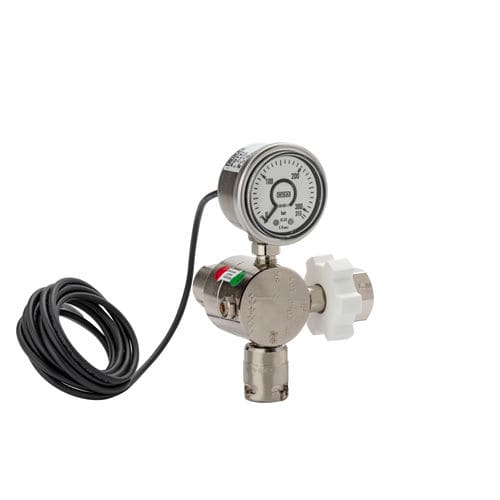

Gas pressure regulator HF

medicalsingle-stagehigh-pressure

Pressure regulator for cylinders, suitable for medical gases, equipped with single pressure gauge to show operating pressure, used on cylinder outlets to reduce the pressure down to that of the line or equipment.Maximum inlet pressure is 200 bar, the outlet pressure is 4 bar.The gas inlet connection is specific to the gas type, the outlet is fitted with an Ø 6 mm hose connector.Its maximum capacity at 4 bar outlet pressure is 9 Nm³/h, 150 Nl/min. N.One HF High Pressure regulator with chemically nickel-plated CW617N brass body. N.One gas-specific inlet. N.One Ø 6 mm hose connector on the outlet or with Afnor socket. N.One overpressure discharge valve, built into the pressure regulator, pre-calibrated and with drain channel, G1/4" M R. N.One High Pressure gauge with range according to the gas used, class 2.5. N.One Low Pressure gauge with range according to the gas used, class 2.5. N.One stainless steel inlet filter with filtration grade > 100 mm. Stainless steel springs. FKM O-Ring. NYLON seal seat. FKM O-Ring. EN ISO 10524-1 | EN ISO 14971 | EN ISO 13485 | EN ISO 15001
