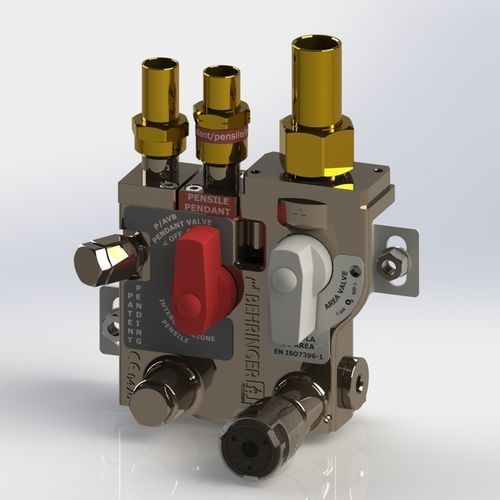

Medical gas valve P/AVB

The P/AVB area valve is developed to meet the safety requirements of Standard 7396-1 and at the same time guarantee notable savings in terms of the time required for installation and building work, to achieve this we managed to combine the pendant shut-off valve with the area valve; the area valve can be fitted with a valve status sensor. The valve also has an emergency inlet and a block for physical disconnection. An optional pressure gauge, or a pressure gauge with electrical contacts can be installed. N.One body made of CW614N chemically nickel-plated brass. N.One Ø 16 mm inlet pipe connector. N.One Ø 12 mm outlet pipe connector. N.One Ø 12 mm outlet pipe connector for pendant. N.One inlet shut-off ball valve. N.One pendant shut-off ball valve. N.One emergency socket. N.One physical disconnection. NYLON shut-off valve gaskets. FKM shut-off valve stem and O-Ring for Oxygen, NBR for other gases. EN ISO 7396-1 | NF S 90-116 | UNI 9507 | DIN 13260-2 | BS 5682 | EN ISO 15001
