Medical gas valve VAC

vacuum

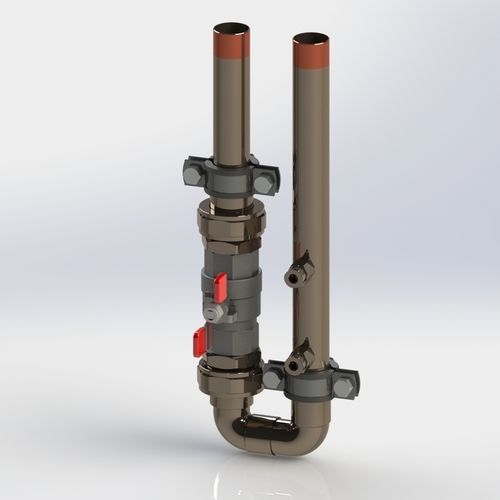

The Vac AVB area valve is used to shut off VACUUM line pipes; it consists of a Ø 28 mm chemically nickel-plated copper pipe, a 1" ball valve and a G 1/4" F R threaded stub end for the installation of a pressure gauge or a pressure gauge with electrical contacts.Weld-on pipe inlet and outlet connections. N.Two Ø 28 mm chemically nickel-plated copper pipe. N.One 1" ball valve.N.1 G1" 1/4 R - 1" R nipple. N.Two G1/4" F R stub end for installing the pressure gauge. EN ISO 7396-1 | EN ISO 15001
