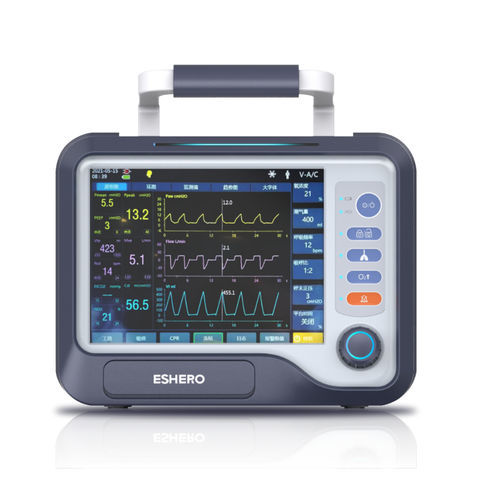

Intensive care ventilator

electronicnon-invasivecompact

• Patient Type: Adult, pédiatrie, neonate; • Large capacity batteries can provide longer usage time and have good output performance; • Intelligent ventilator with WiFi/4G/5G function, which greatly advancesemergency treatment; • 10.4-inch high-resolution LCD display screen with high touch sensitivity and the ability to connect to a mouse for teaching; • The ventilator supports multiple ventilation modes and has both invasive and non-invasive functions, which can meet différent needs; • The ventilator supports multiple expansion interfaces (serial port, network port, VGA, HDMI , Nurse Call, USB, C02,SP02); PRODUCT DESCRIPTION Parameter setting range Respiratory rate: Adult/pediatric: 1-100/min Neonate: 1-150/min SIMVfrequency: 1-80/min Oxygen concentration: 21-100 vol% Pressure trigger: OFF, -20~0.5cmH20 Flow rate trigger: OFF, adults/pediatrics: 0.5-20L/min, neonates: 0.1-5 L/min Positive end expiratory pressure: OFF, 1-50 cmH20 Oxygen therapy flow rate: adults/pediatrics: 2-100L/min, neonates: 2-25 L/min l:E Ratio: 10:1-1:10 Monitoring parameter range Tidal volume: 0-6000ml Peak pressure/platform pressure/average pressure: -20-120 cmH20 Minute ventilation volume: Adult/pediatric: 0-100L/min Neonate: 0-30L/min Oxygen concentration: 15-100 vol% Total frequency/Autonomous frequency/Machine controlled respiratory rate: 0-200/min Peak inspiratory/expiratory flow rate: adults/pediatric: 0-180L/min, neonate: 0-30L/min Positive end expiratory pressure: 0-120 cmH20 Oxygen therapy flow rate: 0-100 L/min l:E Ratio:150:l~l:150
