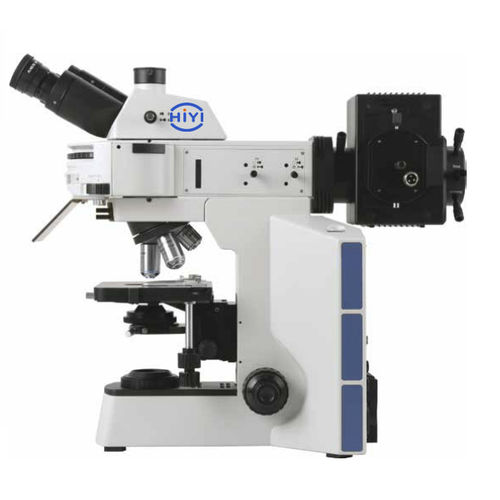

Optical microscope YCX40 series

laboratorybiologicalupright

Optical system Infinity color corrected optical system Viewing head Efficient infinity gemel binocular head, 30°-60° elevation adjustable; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30° inclined gemel binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30° inclined gemel trinocular head, splitting ratio R:T=50:50; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30° inclined gemel trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30° inclined digital binocular head; 360° rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. Eyepiece High eye-point wide field plan eyepiece PL10x22mm, reticle can be assembled. High eye-point wide field plan eyepiece PL15x16mm Objective Infinity plan achromatic objectives (2X,4X,10X,20X,40X,100X) Infinity plan phase contrast objectives (10X,20X,40X,100X) Infinity plan semi-apochromatic fluorescence objectives (4X,10X,20X,40X,100X) Nosepiece Revolving quadruple nosepiece/ quintuple nosepiece Body Coaxial focus system with upper limited and tension adjustment; coarse range: 30mm; fine precision: 0.002mm; focus height adjustable. Stage 175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosive and anti-friction; X,Y moving hand wheel in right or left hand; moving range: 76x50mm, precision : 0.1mm. 187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm.
