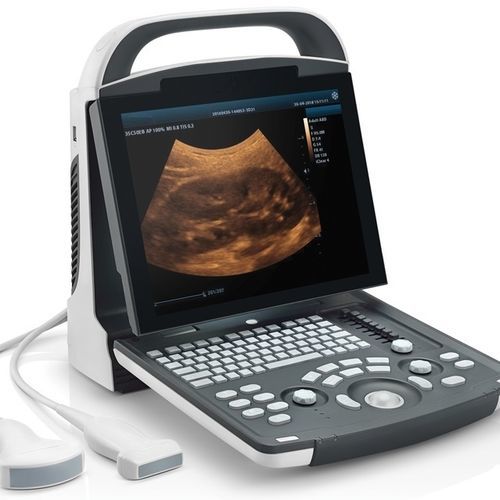

Portable ultrasound system DP10
for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imaging

Portable ultrasound system - DP10 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / for gynecological and obstetric ultrasound imaging / for abdominal and pelvic ultrasound imaging
Portable ultrasound system - DP10 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / for gynecological and obstetric ultrasound imaging / for abdominal and pelvic ultrasound imaging
Portable ultrasound system - DP10 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / for gynecological and obstetric ultrasound imaging / for abdominal and pelvic ultrasound imaging - image - 2
Add to favorites
Compare this product

Go to the Beijing iTrason Technologies website for more information

Characteristics

Ergonomics
portable
Application
for multipurpose ultrasound imaging, for gynecological and obstetric ultrasound imaging, for abdominal and pelvic ultrasound imaging, for urology ultrasound imaging
Imaging modes
B/W, needle guidance
Options
built-in console
Probe type
convex-array, linear-array, endocavitary
Screen size
12-inch
Probe frequency

Min.: 2 MHz

Max.: 10 MHz

Weight

5.5 kg
(12.13 lb)

Length

16.1 cm
(6.3 in)

Height

29 cm
(11.4 in)

Depth

35.4 cm
(13.9 in)

Description

Intelligent Workflow/Storage/Review: Image archive on hard disk and USB mobile storage medium, temporary saving in cine memory 2 USB ports Single-frame image formats: BMP, JPG, DCM, FRM Multi-frame images formats: DCM, CIN iVision: Demo player Cine review: Auto, Manual (auto review segment can be set) Cine memory capacity (Max.) B mode: 128 frames M mode: 12.4s Standard Configuration: 12.1-inch LED monitor One transducer connector Control Panel Handle Indicators: Power/Battery/Standby/LDD status I/O Interfaces 2 USB ports 1 VGA OUT port 1 Video OUT 1 S-Video OUT Measurement & Calculation software packages Options Second transducer connector DICOM 3.0: Image storage and printing Footswitch Mobile trolley: UMT-110 Carrying Case Keyboard dust-proof cover Needle-guided brackets
