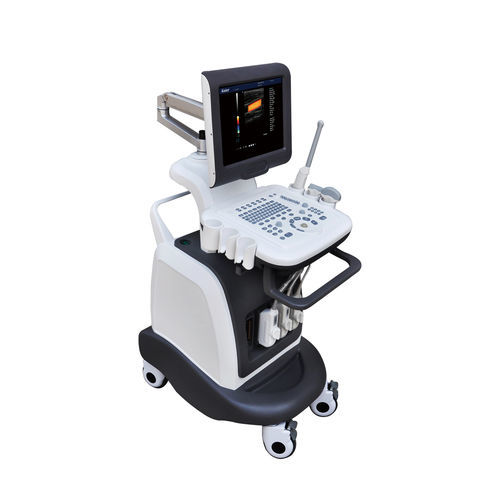

On-platform ultrasound system S60
for multipurpose ultrasound imagingB/Wcolor doppler

On-platform ultrasound system - S60 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / B/W / color doppler
On-platform ultrasound system - S60 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / B/W / color doppler
On-platform ultrasound system - S60 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / B/W / color doppler - image - 2
On-platform ultrasound system - S60 - Beijing iTrason Technologies - for multipurpose ultrasound imaging / B/W / color doppler - image - 3
Add to favorites
Compare this product


Characteristics

Ergonomics
on-platform
Application
for multipurpose ultrasound imaging
Imaging modes
B/W, color doppler, spectral doppler
Probe type
convex-array, microconvex-array, endocavitary
Screen size
15-inch
Weight

60 kg
(132.28 lb)

Length

87 cm
(34.3 in)

Height

63 cm
(24.8 in)

Depth

118 cm
(46.5 in)

Description

General functions of the system: 1) Color monitor: 15 inch high-resolution color LCD monitor. 2) Probe interface: 4, 4 probe interfaces can be connected to all probes and can be interchanged. Other probe interfaces are not reserved and cannot be used universally (not external extension interface) 3) Rotating arm: with rotating arm, it can rotate 360 degrees (up and down, left and right) 2. Probe specification 1) Operating frequency range of optional probe group (2.0-10.0MHz) 2) All probes have 8 groups of fundamental frequency and 8 groups of harmonic frequency 3) Harmonic imaging: can be applied to configured convex array, linear array, micro convex and intracavity probes 4) Abdominal convex array probe: working frequency: 2.0-10.0MHz 5) Linear array probe: working frequency: 2.0-10.0MHz 6) Intracavity probe: working frequency: 2.0-10.0MHz 7) B/D dual-use: linear array: B/PWD, convex array: B/PWD, sector scan: B/PWD 8) Puncture guide device, equipped with probe and puncture device
