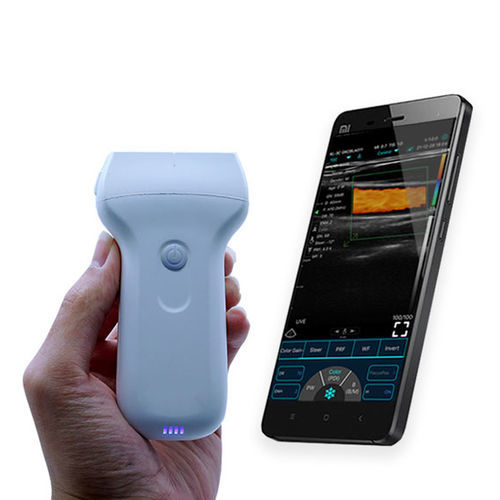

Hand-held ultrasound system C10UL

for multipurpose ultrasound imagingfor emergency medicine ultrasound imagingfor breast ultrasound imaging

FEATURES • - Wireless Ultrasound Probe – C10UL Portable Linear Transducer • - NO WIRES or CABLES • - Waterproof – Great for sterilization • - Built-in Screen to check battery life and connectivity • - Built-in Battery – Lasts 3 hours when fully charged • - Advanced digital imaging technology – Displays Clear Images • - Easy to operate • - Handheld and Lightweight • - For Emergency Situations, Clinics, and Outdoors Inspection • - Intelligent terminal platform • - Powerful expansion functions for different applications • - Storage, communication and printing functions • - Save videos and images APPLICATIONS • - Breast, Pediatrics, Small Parts, MSK, Thyroid, Vascular, Carotid SPECIFICATIONS • - Scanning mode – Electronic linear with 96 elements • - Display mode – B, B/M, Color, PW and PDI • - Frequency – 7.5 – 10 MHz • - Depth – 25 to 55 mm • - Image Adjust – Gain, TGC, Focus, Harmonic, Denoise, Depth, Dynamic Range • - Puncture assist function – the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development • - Measure – Length, Area, Circumference, Angle, Trace • - Annotation • - Image frame rate – 18 frames per second • - Image save – jpg, avi and DICOM format • - Battery lasts 2 hours when fully charged • - Dimension – 156 x 60 x 20mm • - Weight – 125g • - WiFi Type – 802.11g/20MHz/5G/450Mbps • - Compatible Systems – iOS, Android, Windows • - Warranty – 18 Months Warranty
