STANDARD COMPOSITION:
●Temperature Control Mode: servo control;
● Instant Parameter Display: set temp, skin temp, heat power rate;
● Audible/Visual Alarms: temp deviation, sensor failure, power failure, temp override;

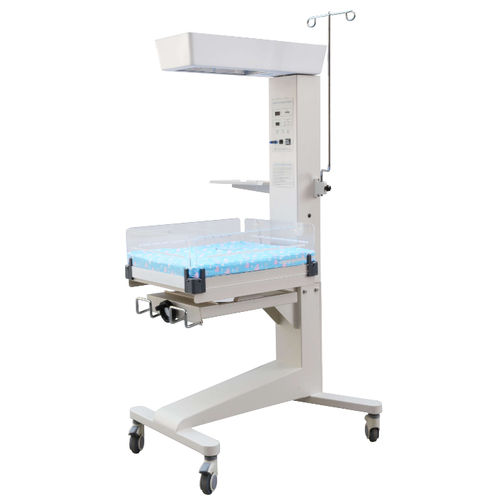

● Tilting Bed with Rotary Radiant Head;
● X-ray Cassette Tray under infant bed, examination light of high illuminance;
● Use anti-blast quartz infrared tube as radiant heating source;
Temperature Control Range: 25℃-37℃,
Temperature sensor accuracy: ≤0.3℃
Mattress surface temperature uniformity: ≤2.0℃
Temperature rise time: ≤45mins
Heat output indicate: 0-100% in 10%
Radiant box horizon angle adjust range: 0-90°adjustable in step-less
Bed tilt adjustment: continues adjustable in ±10°
Mattress Tray Size: 1700px*1350px
Mattress tray Max. load: 10kg
Transfusion pole Max. load: 2kg
Shelf Max. load:2kg
ALARM:
Sensor failure alarm
Over temperature alarm
Deviation alarm: ±1℃
Power failure alarm
ENVIRONMENT TEMPERATURE:
(It is a suggestion that please do not use outside of the allow environment.)
Operate temperature range: 18℃~30℃
Store temperature range: -40℃~+55℃
ENVIRONMENT HUMIDITY:
Operate humidity range: 30%RH~75%RH
Store humidity range: ≤93%RH
ATMOSPHERIC PRESSURE:
Transport and Store atmospheric pressure range: 500hPa~1060hPa
Operate atmospheric pressure range: 700hPa~1060hPa
STREAM VELOCITY:
Ambit environment stream velocity: ≤0.3m/s
