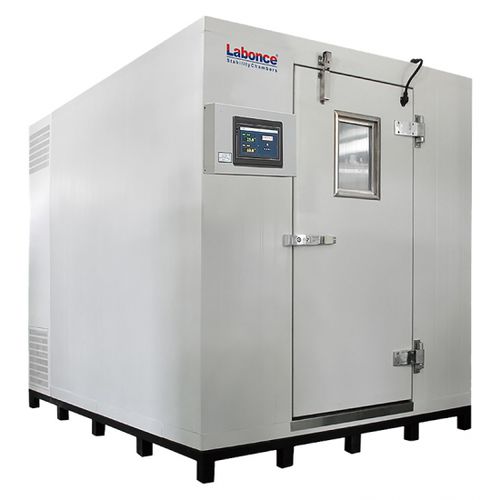

Climate chamber 15000GS

temperaturehumidityphotostability

Ⅰ、Performance Index 1、Reference Standard:GB/T 10586-2006 Humid heat test chamber technical condition, JJF1101-2019 Environmental test equipment temperature, humidity parameters calibration specifications; 2、Temperature Range: 20～45℃，Temperature Fluctuation ≤ ±0.5℃ ,Temperature Deviation≤±1.0℃； 3、Humidity Range:40～80%RH，Humidity Deviation ≤ ±3.0%RH（Customizable Humidity Range:20 ～ 80%RH）; 4、Test Points Optional:25℃/60%RH、30℃/65%RH（Low Humidity:40℃/25%RH、25℃/40%RH）; 5、Low Temperature Laboratory: The cool storage can be customized≤20℃ and 2～8℃ cold storage.(Temperature Fluctuation≤±1.0℃ ，Temperature Deviation ≤ ±2.0℃). Ⅱ、Structural features: ❶ Structure system: New air duct system design to ensure the uniformity of indoor temperature and humidity, the inner wall and air duct plate material is stainless steel 304, the bottom full of stainless，Steel 304 patterned anti-skid plate, with hollow tempered glass observation window, lighting, door heating; ❷ Refrigeration System：Original imported refrigeration compressor unit with backup system; ❸ Control System: Programmable color touch screen controller，With three-level user rights, Audit tracking function; ❹ Three Level Authority：Adopt the user name and password to log in. Different user names have different permissions at least three levels or above; ❺ Audit tracking function：The control system is equipped with historical alarm records and operation records, so that users can clearly grasp the operating ❻ Humidity control: Imported capacitive humidity sensor, high precision, low drift, long life, maintenance-free; ❼ Data management ：Equipped with a pin-type micro printer and electronic data storage；
