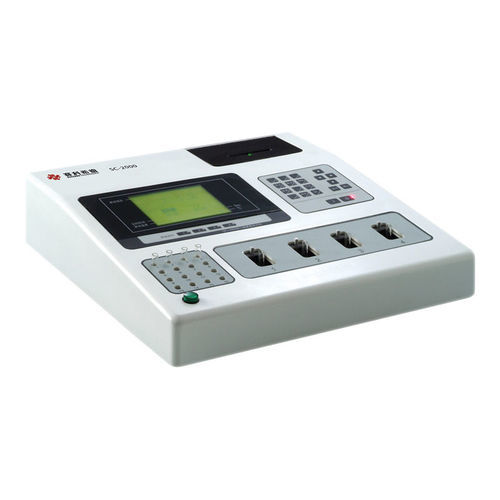

4-channel platelet aggregation system SC-2000

*Photoelectric turbidimetry method with high channel consistency *Magnetic bar stirring method in round cuvettes compatible for various test items *Real time display of testing process on 5-inch LCD *Built-in printer supporting instant and batch printing for the test results and aggregation curve Introduction SC-2000 semi-automated platelet aggregation analyzer uses 100-220V. Suitable for all levels of hospitals and medical research institution of measurement on platelet aggregation. Instrument displays the measured value percentage (%). Technology and experienced staff, advanced detection instruments, high-quality testing equipment and strict quality management system is the SC-2000 good quality guarantee, we ensure that each instrument are subject to stringent testing and inspection. SC-2000 in full compliance with national standards, industry standards and registered product standards. This instruction manual sold together with the instrument. Technical Specification 1) Testing Method - Photoelectric turbidimetry 2) Stirring Method - Magnetic bar stirring method in cuvettes 3) Testing Item - ADP, AA, RISTO, THR, COLL, ADR and relevant items 4) Testing Result - Aggregation curve, Maximum aggregation rate, Aggregation rate at 4 and 2 min, Slope of curve at 1 min. 5) Testing Channel - 4 6) Sample Position - 16 7) Testing Time - 180s, 300s, 600s 8) CV - ≤3% 9) Sample Volume - 300ul 10) Reagent Volume - 10ul 11) Temperature Control - 37±0.1℃ with real time display 12) Pre-heating Time - 0～999sec with alarm 13) Data Storage - More than 300 testing results and aggregation curves 14) Printer - Built-in thermal printer 15) Interface - RS232
