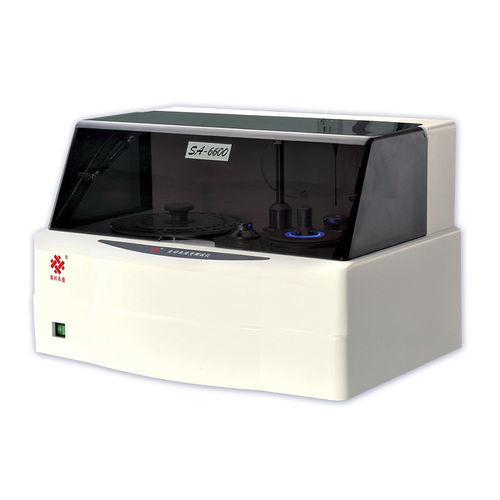

Hemorheology analyzer SA-6600

1. Designed for Medium-Level Lab. 2. Dual method: Rotational Cone plate method, Capillary method. 3. Non-Newtonian standard marker win China National Certification. 4. Original Non-Newtonian Controls, Consumables and application make whole solution. Product Detail Analyzer Introduction SA-6600 automated blood rheology analyzer adopts cone/plate type measurement mode. The product imposes a controlled stress on the fluid to be measured through a low inertial torque motor. The drive shaft is maintained in the central position by a low resistance magnetic levitation bearing, which transfers the imposed stress to the fluid to be measured and whose measuring head is cone-plate type. The whole mensuration is automatically controlled by the computer. The shear rate can be set randomly at the range of (1～200) s-1, and can trace two-dimensional curve for shear rate and viscosity in real time. The measuring principle is drawn on the Newton Viscidity Theorem. 1. Operating Environment: 1.1 Voltage (220±22)V; 1.2 Frequency (50±1) Hz; 1.3 Input power 400VA 1.4 Working environment: temperature 10℃～30℃ Relative humidity 45%～85% Atmospheric pressure 86.0kPa～106.0kPa 1.5 There is no strong electromagnetic field interference, violent vibration, and corrosive gas near the test system. 1.6 The test system should be kept away from direct sunlight and away from heat sources. 1.7 Except for special instruments produced according to special requirements, they are restricted to indoor use.
