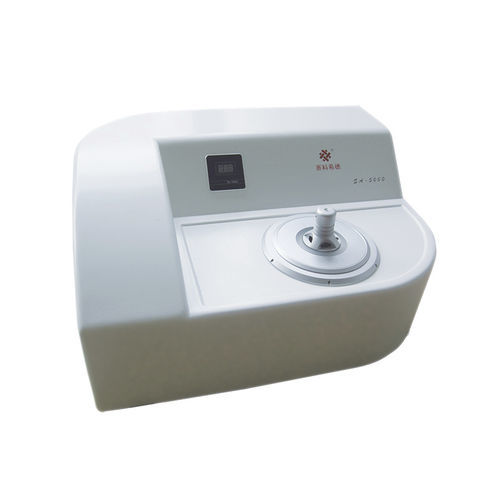

Hemorheology analyzer SA-5000

1. Designed for Small-level Lab. 2. Rotational Cone plate method. 3. Non-Newtonian standard marker win China National Certification. 4. Original Non-Newtonian Controls, Consumables and application make whole solution. Product Detail Analyzer Introduction SA-5000 automated blood rheology analyzer adopts cone/plate type measurement mode. The product imposes a controlled stress on the fluid to be measured through a low inertial torque motor. The drive shaft is maintained in the central position by a low resistance magnetic levitation bearing, which transfers the imposed stress to the fluid to be measured and whose measuring head is cone-plate type. The whole mensuration is automatically controlled by the computer. The shear rate can be set randomly at the range of (1～200) s-1, and can trace two-dimensional curve for shear rate and viscosity in real time. The measuring principle is drawn on the Newton Viscidity Theorem. Features： a) Rheometer software provides measurement function selection by means of menu. b) Rheometer has the functions of real-time display measurement area temperature and temperature regulation; c. Rheometer software can automatically control the analyzer shear rate at the range of 1s-1~200s-1 (shear stress 0mpa~12000mpa), which is continuously adjustable; d. It can display test results for the whole blood viscosity and plasma viscosity; e. It can output shear rate ----- whole blood viscosity relationship curve by means of graphics. f.It can select shear rate optionally on the shear rate ---- whole blood viscosity and shear rate ---- plasma viscosity relationship curves,
