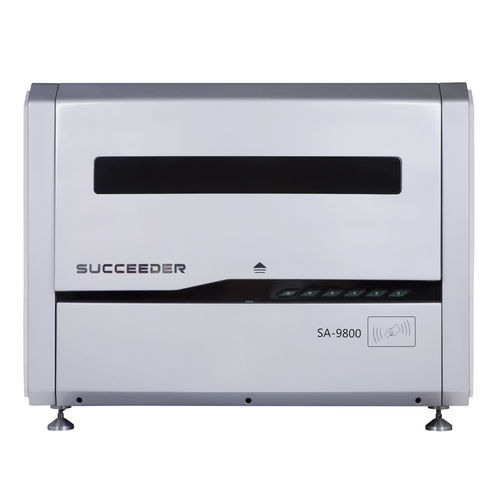

Hemorheology analyzer SA-9800

1. Designed for Large-level Lab. 2. Dual methodologies: Cone plate method, Capillary method. 3. Dual Sample Plates: Whole blood and plasma can be performed simultaneously. 4. Bionic Manipulator: Reversal mixing module, mixing more thoroughly. 5. External barcode reading, LIS support. 6. Non-Newtonian standard marker win China National Certification. A. Method: Cone-plate: complete measurement range, pointwise, prompt, steady state method. Capillary: micro capillary prompt method (pressure sensor). 3. Signal collection technology: High-precision raster subdivision technology. 4. Working mode: simultaneous working with dual-cap piercing probe (with liquid level sensor function), dual-sample plate, dual-methodologies, three testing modules can work simultaneously. 5. Cap-Piercing function: sample cap-piercing probe module for capped sample tube. B. Working environment: 1. Operating voltage: 100~240 VAC, 50~60 Hz. 2. Power consumption: 350 VA. 3. Operating temperature: 10~30 °C. 4. Humidity: 30~75%. C. Working parameters: 1. Accuracy: Newtonian fluid <±1%. Non Newtonian fluid <±2%. 2. CV: Newtonian fluid ≤1%. Non Newtonian fluid ≤2%. 3. Throughput: ≤30 s/sample (whole blood). ≤0.5 s/sample (plasma). 4. Shear rate range: (1~200) S-1. 5. Viscosity range: (0~60) mPa·s. 6. Shear force range: (0~12000) mPa. 7. Sampling volume: 200~800 Technical Specification Test principle - whole blood test method: cone-plate method; plasma test method: cone-plate method, capillary method; Working mode - dual needle dual disk, dual methodology dual test system can work in parallel at the same time
