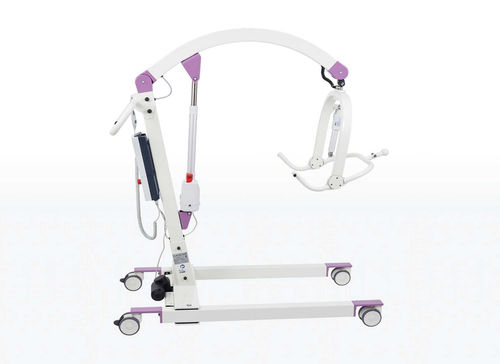

Electric patient lift CARLO Trend, EP 205

on castersliftingaluminum

Patient lift for clip slings. Between sitting and reclining positions electrically adjustable balance spreader bar (pivot range of 360°) with anti-rotation mechanism ARM (patent pending). Chassis and lifting column made of aluminum/Steel construction. Electric height adjustment (with emergency lowering) and electric chassis spreading. Cable remote control with visual indicators for fault, maintenance and battery charging status. Carrier frame and lifting column made out of aluminium and steel Extra light and easy to manoeuvre Electrical height adjustment and electrically spreadable carrier frame Electrical positioning system (EPS) Anti-rotation mechanism (ARM) Can easily pass underneath both bath tubs and care beds Technical specifications Chassis ( L x H ) 1.290 mm x 125 mm Width inside (closed/spread) 540 mm / 1.040 mm Width outside (closed/spread) 700 mm / 1.180 mm Total width of the lift (chassis closed) 700 mm
