Laboratory transilluminator myView

UV

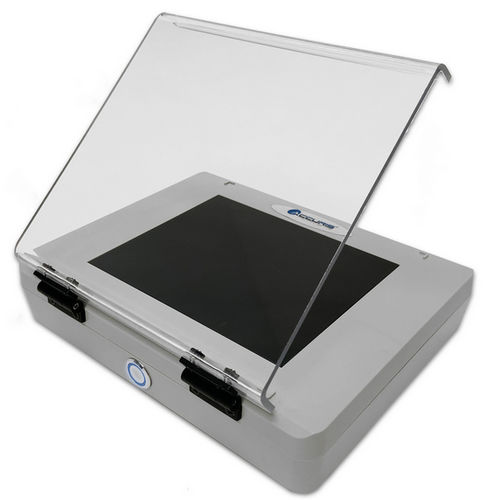

Accuris™ UV Transilluminators feature space-saving designs, to fit perfectly in any busy laboratory. Two models are available, our standard E3000 and new E3100 myView compact model. Choose your model depending on your application and the size or number of gels to analyze. 302nm midrange UV wavelength Optimal for EtBr, SmartGlow, or SYBR stained nucleic acids E3000 models offers dual intensity settings (50% or 100%) Hinged UV safety cover Use with SmartDoc™ enclosure for gel imaging with a smart phone Compatible DNA Stains Ethidium Bromide SmartGlow LD and PS Gel Red Gel Green SYBR Green SYBR Safe Diamond Nucleic Acid Dye E3100 myView Compact UV Transilluminator The myView’s four 6W bulbs coupled with a reflector system and special diffusing filter glass provide exceptional uniformity across the viewing surface. This allows for quantification of DNA and also higher quality imaging when using a camera system. Users are protected by harmful effects of UV radiation by the hinged, UV blocking safety cover. Two friction hinges on the front edge of the cover allow for easy adjustment of the cover angle. Position the cover horizontally for general viewing, tilt it at an angle for gel access and band cutting, or fully open to use the SmartDoc ™ Imaging Enclosure and filters (sold separately) for gel imaging with a smartphone. Use filter E5001-UVBLOCK for best results when imaging SmartGlow, SYBR or ETBR stained gels. The myView™ Transilluminator has a surprisingly small footprint (smaller than a standard piece of paper). However, the viewing surface is large enough to accommodate a mid-sized gel or multiple smaller gels.
