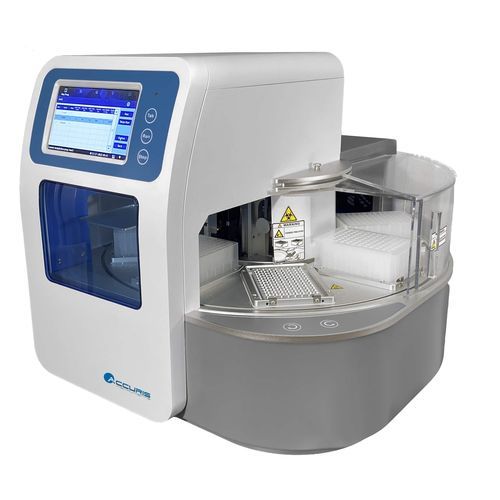

Clinical diagnostic DNA extractor IsoPure™ 96

with touchscreen

The IsoPURE™ 96 from Accuris Instruments is a high throughput automated DNA extraction system that improves efficiency and reproducibility of magnetic bead extractions. Capable of processing up to 96 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing and elution steps are performed automatically, saving valuable hands-on time. The complete purification process can be finished in as little as 10 minutes (depending on the reagent kit and complexity of the program.) Operates as a stand-alone system, or connect to PC for programming 8-position carousel for deep well sample plates Intuitive programming and operation on a user-friendly touch screen Reliable and automated processing of up to 96 samples Specifications Capacity / Sample Volume 96 samples / 20µl to 1000µl Magnetic bead recovery rate >95% Lysis temperature range RT to 120°C Elution temperature range RT to 120°C Display 7.0 inch color screen Programming control Touch screen/mouse, or PC connection Program memory 100 programs Communication ports USB, Ethernet Contamination Control UV Sterilization Electrical Input Universal 120 to 240VAC Dimensions 22×24.5×19.7 in (56x62x50 cm)
