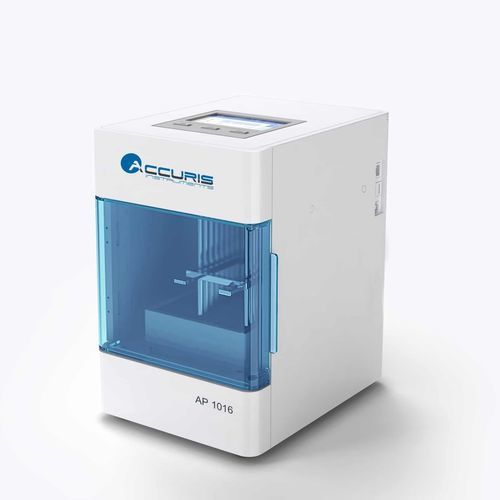

Research DNA extractor IsoPure™ Mini

for clinical diagnosticfully automatedcompact

The IsoPure™ Mini from Accuris Instruments is an extremely compact, automated extraction system that improves efficiency and reproducibility of magnetic bead extractions. Capable of processing up to 16 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing and elution steps are performed automatically, saving valuable hands-on time. The complete purification process can be finished in as little as 10 minutes (depending on the reagent kit and complexity of the program.) Compact design takes up only 8×10 inches of bench space Intuitive programming on a user-friendly android tablet app Higher yields and reproducibility than manual extraction methods Fast and reliable sample processing Specifications Capacity / Sample Volume 16 samples / 20µl to 1000µl Magnetic bead recovery rate >95% Lysis temperature range RT to 120°C Elution temperature range RT to 120°C Display 4.3 inch color screen Programming control Touch screen/mouse, or PC connection Program memory 100 programs Communication ports USB, Ethernet Contamination Control UV Sterilization Electrical Input Universal 120 to 240VAC Dimensions 7.9×10.2×11.8 in (20x26x30 cm)
