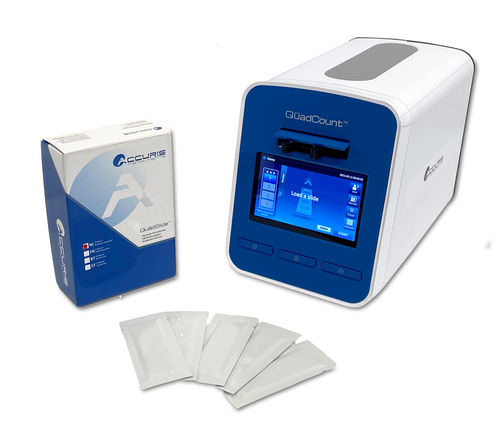

Automatic cell counter QuadCount™

compactmammalian cellssomatic cells

The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source, precision optics and a high resolution CMOS detector. A finely tuned, motorized XYZ positioning stage provides for extra fine focusing and ability to capture multiple images. Fast, accurate and reproducible results Intuitive software and touch-screen interface Convenient and cost-effective QuadSlides™ Count sample volumes up to 3.6ul . Specifications Optics - High quality 4x objective lens Pixel Resolution - 2592 x 1944 Image Detection - 5 mega pixel CMOS sensor Illumination - Green LED (50,000 hour life) Sample Volume - 20ul (4 samples per QuadSlide) Max. Counting Volume - 3.6ul (24 image captures) Consumable Slide - QuadSlide, 4-chamber Counting Modes/Speeds - Quick (20 sec), Normal (30 sec), Precise (100 sec) Dynamic Range - 1 x 104 to 1 x 107 cells per ml Cell Size Range - 5 to 60 um Data Output - USB drive for PDF report Dimensions - 6.4 x 11.5 x 8.5 inches / 16.3 x 29.3 x 21.6 cm Weight - 11 Lbs Electrical - 115V or 230V, 50-60Hz. With count speeds at fast as 20 seconds per sample, the Accuris QuadCount provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead/live determinations, reduces counting errors, saves time, and improves efficiency. The QuadCount utilizes a unique 4-chambered disposable QuadSlide™. Four samples can be processed in one slide (twice the capacity of standard 2-chambered slides), decreasing consumable costs. Each chamber has a hydrophilic inner surface with an engraved grid pattern.
