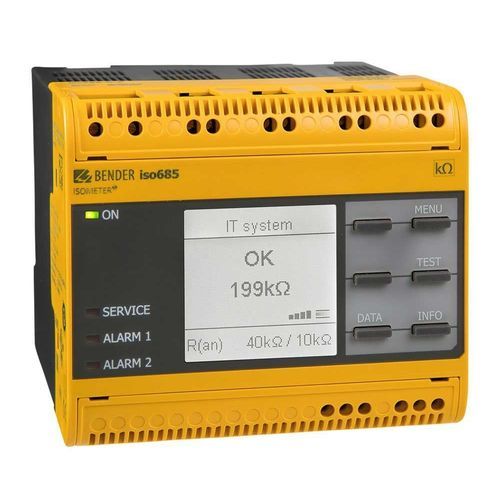

Electrical insulation monitoring device ISOMETER® iso685-…-B

for medical IT systemsautomaticportable

Predefined measurement profiles Reliable measurement of insulation resistance, voltage, capacitance and frequency Integrated web server Modbus TCP/RTU Can be used in coupled IT systems The ISOMETER® is an insulation monitoring devices in accordance with IEC 61557-8 for IT systems. The devices are universally applicable in AC, 3(N)AC, AC/DC and DC systems. AC systems may include extensive DC-supplied loads (such as rectifiers, inverters, variable-speed drives). ISOMETER® for IT AC systems with galvanically connected rectifiers or inverters and for IT DC systems (IT = unearthed systems) Automatic adaptation to the existing system leakage capacitance Combination of AMPPlus and other profilespecific measurement methods Two separately adjustable response value ranges of 1 kΩ…10 MΩ High-resolution graphic LC display for excellent readability and recording of the device status Connection monitoring (monitoring of the measuring lines) Automatic device self test Graphical representation of the insulation resistance over time (isoGraph) History memory with real-time clock (buffer for three days) for storing 1023 alarm messages with date and time
