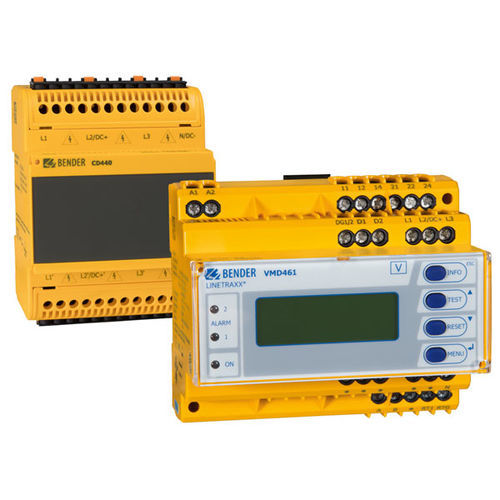

Electrical safety monitoring device LINETRAXX® VMD461

for medical IT systemsportable

Voltage monitoring up to 1200 V All functions are represented in ANSI codes 3-stage voltage and frequency monitoring with a corresponding response delay Can be used optionally for a wide variety of system configurations such as AC, 3AC, 3NAC and DC The multifunctional voltage monitoring relay VMD461 monitors frequencies, undervoltages and overvoltages in DC, AC and 3(N)AC systems. The phase voltages and/or line-to-line voltages are measured as r.m.s. value and are continuously shown on the device display. OCOF df/dt Vector shift monitoring Unbalance monitoring Phase sequence monitoring The corresponding ANSI codes for all available measuring functions are provided. Configurable delay times allow considering special installation-specific properties (e.g. device-specific start-up procedures). The VMD461 requires an external supply voltage. The optional use of a CD440 coupling device extends the voltage range that can be monitored to DC/3AC 1200 V or 1AC/3NAC 690 V.
