Insulation monitoring device for mobile generators
Protective separation with insulation monitoring and disconnection
According to IEC 60364-5-55 and IEC 61557-8
Two separately configurable response values
Multi-functional LC display

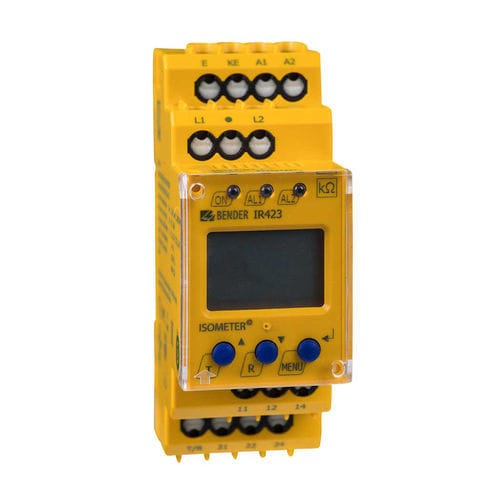

The ISOMETER® of the IR423 series is designed to monitor the insulation resistance RF of an unearthed AC system of 0…300 V to earth that is supplied by a mobile generator according to IEC 60364-5-551 / DIN VDE 0100-551 (VDE 0100-551). The IR423 is suitable for AC systems with operating frequencies ≥ 30 Hz as well as for AC systems with directly connected DC circuits. The maximum permissible system leakage capacitance Cemax is 5 F.
Insulation monitoring for mobile generators AC 0…300 V
Protection by electrical separation with insulation monitoring and disconnection
Version “W” for protection against high mechanical stress
Two separately adjustable response values
Connection monitoring system/earth
Power On LED, alarm LEDs: Alarm 1, Alarm 2
Internal/external test/reset button
Two separate alarm relays (one changeover contact each)
N/O or N/C operation, selectable
Fault memory behaviour, selectable
Self monitoring with automatic alarm
Multi-functional LC display
Adjustable response delay
Two-module enclosure (36 mm)
Push-wire terminal (two terminals per connection)
