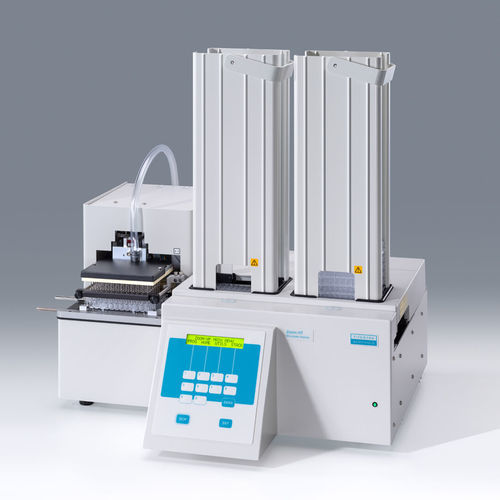

Automatic microplate washer Zoom HT LB 920

laboratoryELISA test

The Zoom HT microplate washer is robust, easy-to-use and delivers the speed you need for high throughput. The unmatched speed of the system is the result of the integrated stackers and one-rail design. This plate washer will process both 96 and 384 well microplates using the same wash head. HIGHLIGHTS The fastest plate washer It takes only 17 seconds for a triple wash of a 96 well microplate. This, combined with the unique one-rail plate transfer design that moves the plate short distance from the stack to the wash position, enables a typical throughput of 150 washed plates per hour, or up to 1050 plates per day (3 x 300 µL, 7 h per day, 1 single washer). Due to your cookie settings this video is not visible. You will see the content after you have agreed to the use of Statistics & Marketing in the cookie settings. A single wash head for all plate types Each wash channel has its own aspirate tip and dispense tip, which allows simultaneous washing of all 96 wells. The same 96 channel wash head is used for 384 well washing in four quadrants, making it unnecessary to purchase different wash heads for different plate types or applications, and having to replace them. Rapid positioning of the wash head provides 384 well wash speeds comparable to 384 channel washers. Large diameter aspirate tips, 3-dimensional (3D) tip positioning and a constant flow rate vacuum pump ensure a smooth, efficient washing performance. Individual configuration of the washing protocol Two wash modes are available: Regular wash mode and Superwash mode (also known as “Overflow mode”). In the regular wash mode, th
