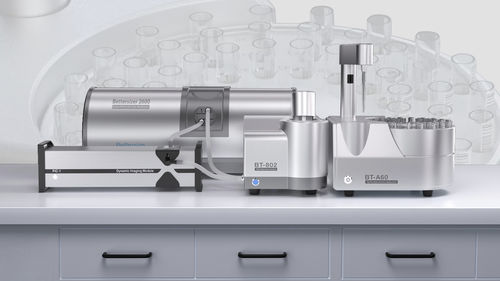

Laser diffraction particle size analyzer 2600

opticalfor the pharmaceutical industryfor the food industry

Particle size can be measured by either wet or dry method, using the Bettersizer 2600. A variety of applications have been covered by this versatile, powerful analyzer with its modular design and patented technologies. Users can characterize materials from 0.02 μm to 2600 μm, easily and accurately. Features and Benefits ● Technology: Laser diffraction ● Particle size range: Wet dispersion: 0.02 to 2,600μm Dry dispersion: 0.1 to 2,600μm ● Wet and dry method of particle sizing is suitable for a wide variety of dispersing particle systems ● Precise measurement of both large and small particles covering the broadest range by a new patented technology utilizing both Fourier and Inversed Fourier optical systems ● Optical bench with 92 detectors covering an angular range of 0.016° - 165° Optional wet and/or dry dispersion ● Small volume dry dispersing module for small sample quantities especially for pharmaceutical or valuable samples in short supply ● Easy and fast to changeover between dispersing modules ● Easy to implement, create and use Standard Operation Procedures for new materials ● Refractive index measurement for providing a more accurate parameter to calculate the results. ● User-friendly software, easily learnt 1. Fourier and Inverse Fourier Optical System The Bettersizer 2600 is superior in the combination of Fourier and inverse Fourier designs. This smart design allows, on the one hand, the detection of scattered light in a very wide angular range from 0.016° to 165°. On the other hand, in contrast to the inverse Fourier design, the particles do not have to lie on one plane
