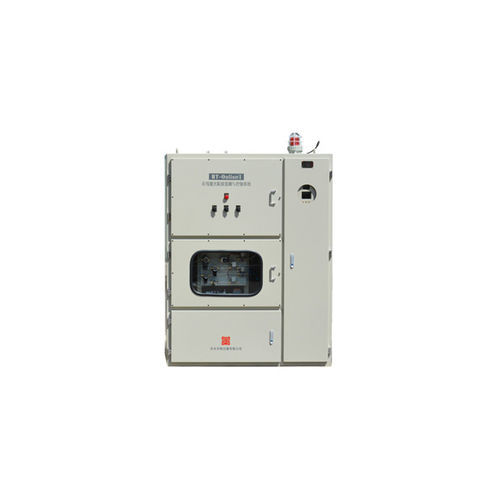

Laser diffraction particle size analyzer BT series

for the pharmaceutical industryprocessonline

Driven by Standard Operating Procedure (SOP) and integrated with different control platforms and protocols, the BT-Online1 provides real-time particle size measurement results for dry process lines 24/7. Optional feedback control can be therefore carried out. With the automatic alignment system, uninterruptible power supply (UPS), and abnormal pressure protection, the BT-Online1 possesses strong environmental adaptability, offering monitoring of the process line with minimal manual intervention. Features and Benefits ● Representative sampling ● Dual protection from contamination ● Monitoring of up to 4 process lines ● Automatic alignment ● Intuitive software ● Multiple communication protocols BT-Online1—Online Measurement for Dry Powder The BT-Online1 is used as an online particle size analyzer for dry particles within the size range of 0.1 to 1000 μm. The BT-Online1 is integrated into a process loop, providing real-time measurement results that assist in quality inspection and parameter monitoring. Representative sampling with two samplers 1. Straight flute Suitable for the sample with wide particle size distribution Good representative Simple maintenance 2. Sample auger Suitable for thin material flow Threaded rod ensures effective extraction Dual protection from contamination The lenses of the BT-Online1 are protected using a dual air curtain and sheath gas, which greatly reduce maintenance costs, increase efficiency, and prevent costly downtime. 1. Dual air curtain Protection of lenses from contamination based on the two generated positive pressure zones Assistance in sample dispersion
