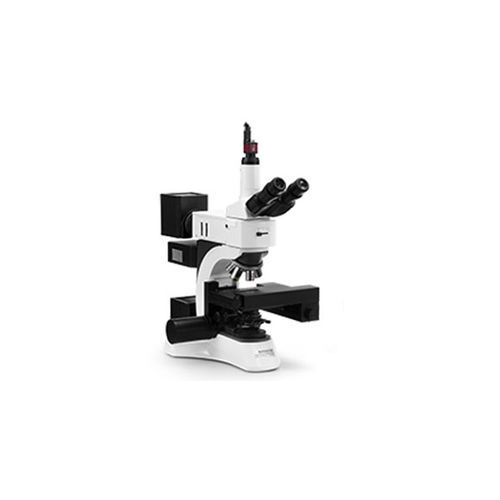

Static image analysis particle size analyzer BeVision M1

for the pharmaceutical industryfor the food industryparticle shape

The BeVision M1 is an automated image scanning system, particularly suitable for the cleanliness analysis of particulates on filters. Equipped with a metallurgical microscope, programmable motorized stage, auto-focus function, and high-resolution CMOS, the BeVision M1 can capture and recognize each individual particle, automatically stitching the images to a large overview image. Features and Benefits ● Measurement range: 1 - 10,000 µm ● Results in compliance with ISO 9276-6 ● Highly reproducible measurements ● A high-speed CCD camera ● Powerful software eases your work ● Automatic sample stage with high position accuracy ● 24 different particle size and shape parameters ● A key part of surface cleanliness measurements 1) Why Image Analysis Method? Easy Capture an image of particles, identify particles, then measure their size and shape. Every step of image analysis is easy and clear. Shape analysis Based on a direct view of particles, it is possible to analyze not only the size of particles, but also their shape. Seeing is believing The image analysis method determines the size and shape of every individual particle and then sums it up to form a statistic. Details of particle size or shape distribution can be accurately provided. 2) Why Static Image Analysis Method? Clear vision In static image analyzers, precision microscopes and high-resolution cameras are specialized for high - quality particle images. Undersized particle sensitivity The static image analysis method is sensitive to undersized particles; it is even possible to estimate the size of undersized particles.
