Medical vacuum pump MEDEVICE 3×41 PBO
rotary vanelubricated

Medical vacuum pump - MEDEVICE 3×41 PBO - Bgs General Srl - rotary vane / lubricated

Add to favorites

Compare this product

Go to the Bgs General Srl website for more information

Characteristics

Applications: medical
Technology: rotary vane
Options: lubricated
Flow: 40 m³/h, 48 m³/h, 120 m³/h, 144 m³/h
(1,412.59 ft³/h, 1,695.1 ft³/h, 4,237.76 ft³/h, 5,085.31 ft³/h)
Power: 1.1 kW, 2.2 kW
(1.5 hp, 2.99 hp)
Pressure: 10 mbar
(0.15 psi)
Tank volume: 270 l, 500 l
(71.3 gal, 132.1 gal)
Weight: 360 kg, 420 kg
(793.7 lb, 925.9 lb)

Description

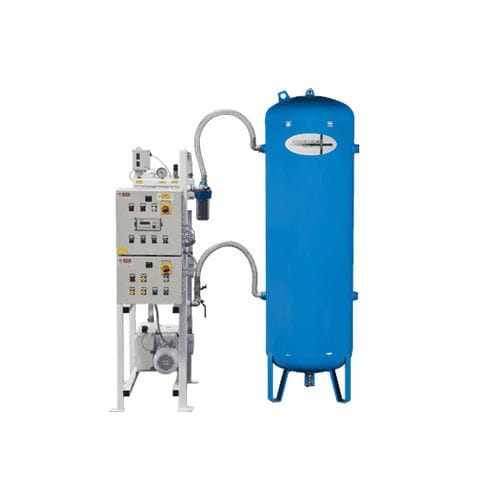

MEDEVICE vacuum systems are CE CERTIFIED Medical Devices designed for use in hospitals, compliant with Directive 93/42/EEC and the standard UNI EN 7396-1:2007. The vacuum system consists of 3 or more vacuum pumps assembled on a vertical/horizontal frame, one or more accumulation tanks with a by-pass, primary electrical panel, emergency electrical panel and double bactericidal filter. The main electrical panel features a digital display for managing all main operating settings. Vacuum systeVacuum system consisting of 3 rotary vane vacuum pumps with oil injection lubrication, a vertical frame reducing clearance requirements, a vertical tank, primary electrical panel, emergency electrical panel and double bactericidal filter. The pumps are equipped with: vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
