Medical vacuum pump MEDEVICE 3×28 PBO
manualrotary vanelubricated

Medical vacuum pump - MEDEVICE 3×28 PBO - Bgs General Srl - manual / rotary vane / lubricated
Medical vacuum pump - MEDEVICE 3×28 PBO - Bgs General Srl - manual / rotary vane / lubricated
Add to favorites
Compare this product

Go to the Bgs General Srl website for more information

Characteristics

Applications
medical
Technology
manual, rotary vane
Options
lubricated
Flow

28 m³/h, 33 m³/h, 84 m³/h, 99 m³/h
(988.81 ft³/h, 1,165.38 ft³/h, 2,966.43 ft³/h, 3,496.15 ft³/h)

Power

0.75 kW, 1.5 kW
(1.02 hp, 2.04 hp)

Pressure

10 mbar
(0.15 psi)

Tank volume

500 l
(132.1 gal)

Weight

290 kg
(639.3 lb)

Description

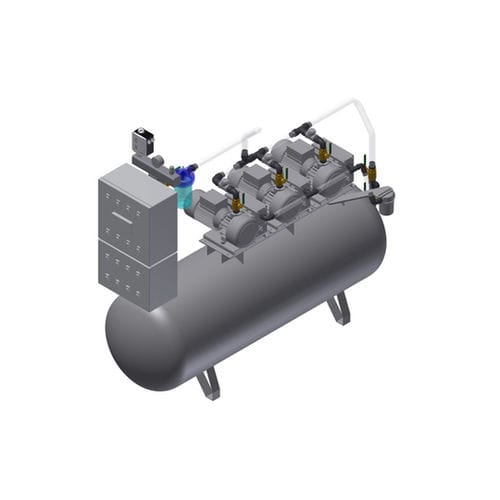

Vacuum system consisting of 3 rotary vane vacuum pumps with oil injection lubrication assembled on horizontal tank reducing clearance requirements, primary electrical panel, emergency electrical panel and double bactericidal filter. The pumps are equipped with: vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
