Medical vacuum system MEDEVICE 2X12 PBO
rotary vanemanuallubricated

Medical vacuum system - MEDEVICE 2X12 PBO - Bgs General Srl - rotary vane / manual / lubricated
Medical vacuum system - MEDEVICE 2X12 PBO - Bgs General Srl - rotary vane / manual / lubricated
Add to favorites
Compare this product


Characteristics

Applications
medical
Technology
rotary vane, manual
Options
lubricated
Flow

12 m³/h, 14 m³/h, 24 m³/h, 28 m³/h
(423.78 ft³/h, 494.41 ft³/h, 847.55 ft³/h, 988.81 ft³/h)

Power

0.74 kW
(1.01 hp)

Pressure

10 mbar
(0.15 psi)

Tank volume

270 l
(71.3 gal)

Weight

140 kg
(308.6 lb)

Description

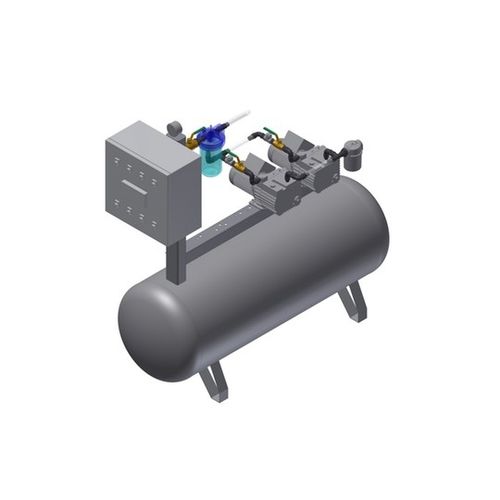

MEDEVICE horizontal tank vacuum system with 2 pumps. The system consists of 2 vacuum pumps assembled onto a horizontal tank, electrical power and control panel, and a bactericidal filter. The electrical panel features a digital display for managing all of the system’s main operating settings. Vacuum system consisting of 2 rotary vane vacuum pumps with oil injection lubrication, a horizontal tank, electrical power and control panel, and a bactericidal filter. The pumps are equipped with: vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
