Medical vacuum system MEDEVICE 2X12 PBO + FBD150rotary vanemanuallubricated
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- rotary vane, manual
- Options
- lubricated
- Flow
12 m³/h, 14 m³/h, 24 m³/h, 28 m³/h
(423.78 ft³/h, 494.41 ft³/h, 847.55 ft³/h, 988.81 ft³/h)- Power
0.74 kW
(1.01 hp)- Pressure
10 mbar
(0.15 psi)- Tank volume
270 l
(71.3 gal)- Weight
150 kg
(330.7 lb)
Description

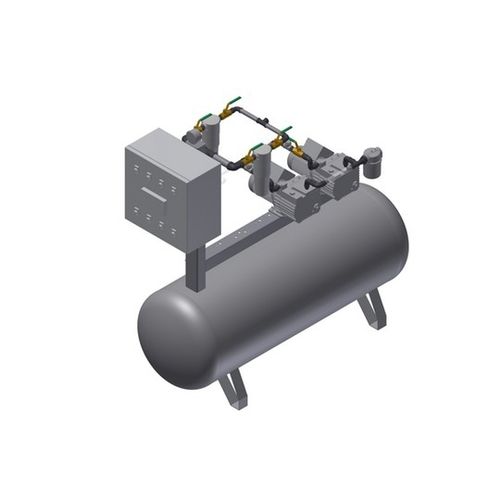

MEDEVICE horizontal tank vacuum system with 2 pumps.
The system consists of 2 vacuum pumps assembled onto a horizontal tank, electrical power and control panel, and a bactericidal filter.
The electrical panel features a digital display for managing all of the system’s main operating settings.
Vacuum system consisting of 2 rotary vane vacuum pumps with oil injection lubrication, a horizontal tank, electrical power and control panel, and a bactericidal filter.
The pumps are equipped with:
vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
