Medical vacuum pump MEDEVICE 2X28 PBO + FBD200manualrotary vanelubricated
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- manual, rotary vane
- Options
- lubricated
- Flow
28 m³/h, 33 m³/h, 56 m³/h, 66 m³/h
(988.81 ft³/h, 1,165.38 ft³/h, 1,977.62 ft³/h, 2,330.77 ft³/h)- Power
1.5 kW
(2.04 hp)- Pressure
10 mbar
(0.15 psi)- Tank volume
500 l
(132.1 gal)- Weight
285 kg
(628.3 lb)
Description

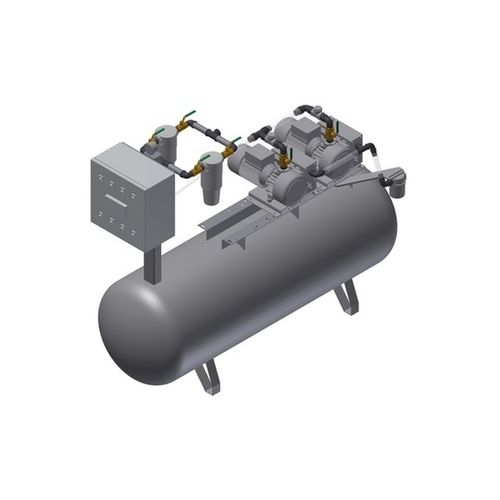

MEDEVICE horizontal tank vacuum system with 2 pumps.
The system consists of 2 vacuum pumps assembled onto a horizontal tank, electrical power and control panel, and a bactericidal filter.
The electrical panel features a digital display for managing all of the system’s main operating settings.
Vacuum system consisting of 2 rotary vane vacuum pumps with oil injection lubrication, a horizontal tank, electrical power and control panel, and a bactericidal filter.
The pumps are equipped with:
vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
