Medical vacuum pump MEDEVICE 2X61 PBOmanualrotary vanelubricated
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- manual, rotary vane
- Options
- lubricated
- Flow
60 m³/h, 72 m³/h, 120 m³/h, 144 m³/h
(2,118.88 ft³/h, 2,542.66 ft³/h, 4,237.76 ft³/h, 5,085.31 ft³/h)- Power
3 kW
(4.08 hp)- Pressure
10 mbar
(0.15 psi)- Tank volume
500 l
(132.1 gal)- Weight
320 kg
(705.5 lb)
Description

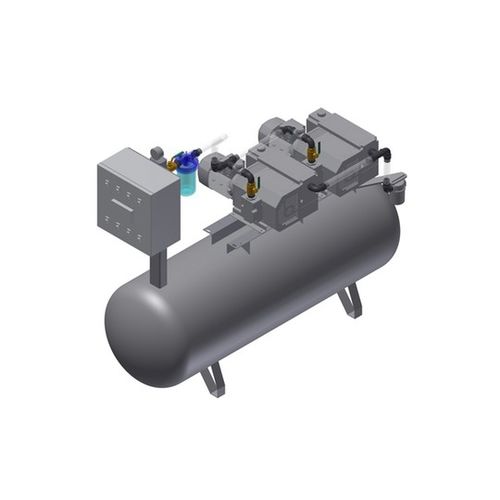

MEDEVICE horizontal tank vacuum system with 2 pumps.
The system consists of 2 vacuum pumps assembled onto a horizontal tank, electrical power and control panel, and a bactericidal filter.
The electrical panel features a digital display for managing all of the system’s main operating settings.
Vacuum system consisting of 2 rotary vane vacuum pumps with oil injection lubrication, a horizontal tank, electrical power and control panel, and a bactericidal filter.
The pumps are equipped with:
vibration absorbing feet, non-return valve, manual insulation valve and an inlet safety filter.
