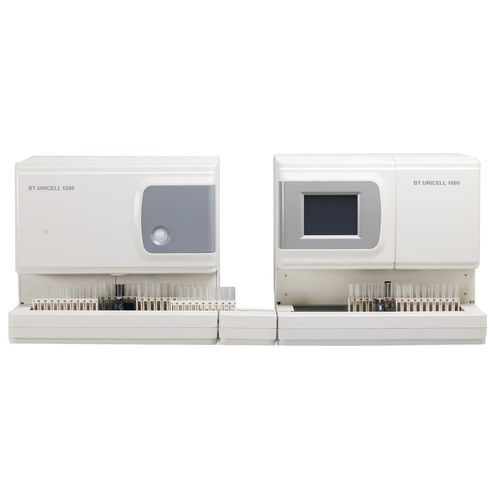

Automatic urine sediment analyzer BT URICELL-1600

for clinical diagnosticbenchtopSTAT

One tube, complete report 14 parameters strip with ACR CIS Technology with 5 wavelengths Dual objective lenses 40X and 10X Real Image traceable SPECIFICATIONS Principle - CIS Color Detecting System, 5 wavelengths colorimetry method, refraction method Parameters - LEU, KET, NIT, URO, BIL, PRO, GLU, SG, BLD, pH, VitC, CR, CA, MA, ACR, COLOR, TURBIDITY Throughput - 300 T/H Strip - F series strips Strip Cabin Capacity - 400 Sample Position - 110 positions for stand- alone mode; 60 positions for online mode Sample Volume - ≥2 ml, online mode≥3 ml Display - 8- inch color touch LCD Results Storage - 300,000 sample results, up to 4GB Print - Internal thermal printer, external printer Communication - RS-232, USB, LAN, parallel port, PS/2 Dimension & weight - 630 mm (L) x 626 mm (W) x 570 mm (H), 55 kg Principle - Digital imaging technology Parameters - Urine formed elements - RBC, WBC, SQEP, NSE, HYA, GRAN, CAOX, URIC, BACT, YST, MUCS, and etc. RBC phase detection - MCD, RDW-CV, R-rate Integrate urine dry chemitry results Throughput - max. 100T/H Sample - Nature urine Sample Volume - ≥2 ml, online mode≥3 ml Report Unit - xx/μL, xx/HPF, xx/LPF, plus system STAT Function - Yes Connection - RS- 232, USB, LAN port, parallel interface Dimension & weight - 650 mm (L) x 640 mm (W) x 560 mm (H), 60 kg
