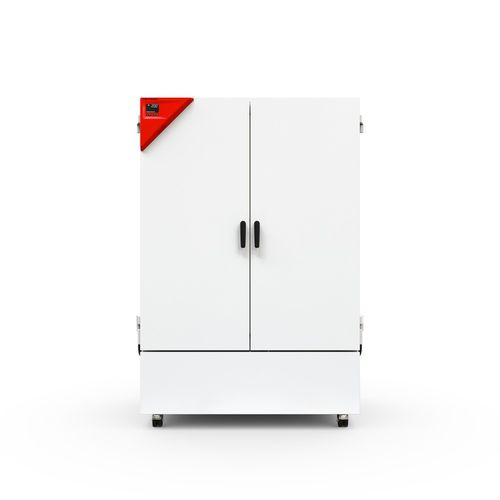

Cooling laboratory incubator KB 1060

forced convectionfor scientific researchfor microbiology

Product description
KB 1060 cooling incubators are laboratory units for controlled incubation of microorganisms and temperature-sensitive samples. They provide precise temperature control across a wide range, include a dry hot-air disinfection routine and support simple programming for weekend operation. The new KB generation offers up to 40% lower energy consumption compared with the previous model.

Benefits

• Precise: stable incubation conditions with power reserves for uniform results
• Reliable: long-term, fail-safe operation thanks to proven compressor technology and a stainless-steel interior
• Functional: hot-air disinfection routine and simple programming of a second setpoint
• Efficient: up to 40% lower energy consumption due to modern inverter cooling technology

Important characteristics

• Temperature range: 0 °C to +70 °C
• APT.line™ preheating chamber technology
• Energy-efficient inverter cooling unit
• Climate-neutral refrigerant: R-600a
• Door heating to avoid condensation
• HIT sandwich housing technology
• Interior fully stainless steel
• Inner doors made of metal-oxide-coated safety glass
• Two stainless-steel racks (standard)
• 80 mm × 45 mm access port with silicone plug
• Tabletop units stackable with stacking adapter
• Floor-standing units with sturdy twin casters and front brakes
• Simple programming of a second temperature setpoint
• Internal data logger; measured values exportable in open format via USB
• Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
• Unit self-test for comprehensive status analysis
• Data interfaces: Ethernet, USB

Data
Article Number: 9020-0476 | 9020-0504
Designation: KB1060-230V | KB1060UL-120V
Option model: Standard

Performance Data Temperature
Temperature range: 0...70 °C
Temperature uniformity at 37 °C: 0.2 ± K
Temperature fluctuation at 37 °C: 0.1 ± K
Max. heat compensation at 37 °C: 640 W
Recovery time after door opened 30 s at 37 °C: 3 min

Electrical data
Rated voltage: 220...240 V (9020-0476) | 120 V (9020-0504)
Power frequency: 50/60 Hz
Nominal power: 1.5 kW
Unit fuse: 16.0 A
Phase (nominal voltage): 1~

Dimensions and weights
Interior volume: 1,070 L
Net weight (empty): 315 kg
Load per rack: 40 kg
Permitted total load: 200 kg
Wall clearance back: 100 mm
Wall clearance sidewise: 180 mm

Housing dimensions (not incl. fittings and connections)
Width net: 1,285 mm
Height net: 1,951 mm
Depth net: 1,175 mm

Internal Dimensions
Interior width: 1,011 mm
Interior height: 1,250 mm
Interior depth: 847 mm
Inner doors: 2
Unit doors: 2

Environment-specific data
Sound-pressure level at 25 °C: 52 dB(A)
Energy consumption at 25 °C: 240 Wh/h (9020-0476) | 270 Wh/h (9020-0504)
Energy consumption at 37 °C: 260 Wh/h (9020-0476) | 300 Wh/h (9020-0504)

Fixtures
Number of shelves (std./max.): 2/16

Options, accessories & services (selection)
Available options include reinforced inner chamber (perm. load with U rails 300 kg), mechanical or electromechanical door locks, height-adjustable swivel casters, shipping pallet, interior climate-resistant LED lighting, stacking adapter for tabletop units, various access ports with silicone plugs (30/50/100 mm), additional racks and rail kits, LED light bar sets, cleaning agents, APT-COM™ software editions, calibration certificates, maintenance contracts (BRONZE/SILVER/GOLD), qualification/IQ-OQ services and warranty extension options.

Characteristics / Technical specifications

• Model: KB 1060
• Temperature range: 0 °C to +70 °C
• Interior usable volume: 1,070 L
• Construction: interior completely stainless steel; inner doors metal-oxide-coated safety glass
• Cooling: inverter cooling unit with R-600a refrigerant
• Energy consumption (typical): approx. 240–300 Wh/h depending on variant and temperature
• Noise level: approx. 52 dB(A)
• Power (nominal): 1.5 kW; Fuse: 16 A; Single-phase
• Net weight (empty): 315 kg
• Usable racks: standard 2, expandable to 16; load per rack 40 kg; permitted total load 200 kg
• External dimensions (W×H×D): 1,285 × 1,951 × 1,175 mm (net)
• Internal dimensions (W×H×D): 1,011 × 1,250 × 847 mm
• Safety: Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms; unit self-test
• Data interfaces: Ethernet and USB; internal data logger with open-format export
