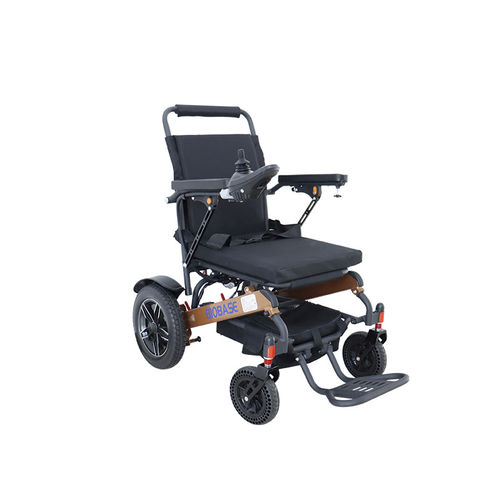

Electric wheelchair MFN803 seriesoutdoorindoorreclining
Add to favorites
Compare this product
Characteristics
- Propulsion
- electric
- Applications
- outdoor, indoor
- Options
- reclining, smart, folding
- Accessories
- with legrest, with headrest
- Frame materials
- aluminium frame
- Total height (cm)
Min.: 98 cm
(38.6 in)Max.: 98 cm
(38.6 in)- Total length (cm)
Min.: 63 cm
(24.8 in)Max.: 63 cm
(24.8 in)- Total width (cm)
Min.: 104 cm
(40.9 in)Max.: 104 cm
(40.9 in)- Max supported weight (kg)
120 kg
(264.6 lb)- Max speed (km/h)
4.5 km/h
(2.8 mph)
Description
Introduction
The MFN803 electric wheelchair is designed for users with reduced mobility, providing reliable indoor and outdoor mobility powered by a removable 24V lithium battery. It combines compact dimensions, modular variants and essential safety features to support daily independent use.
Models
Key features
Technical parameters
Accessories
Ordering information
Brand: BIOBASE; Origin: China; Delivery time: Within 7 days; Supply: Factory direct supply.
The MFN803 electric wheelchair is designed for users with reduced mobility, providing reliable indoor and outdoor mobility powered by a removable 24V lithium battery. It combines compact dimensions, modular variants and essential safety features to support daily independent use.
Models
- Available models: MFN803A, MFN803B, MFN803C, MFN803D, MFN803E, MFN803F
Key features
- Humanized intelligent controller with 360° sensitive control and mobile app connectivity.
- Front honeycomb wheel (8") and rear aluminum-alloy hub wheel (12") for improved shock absorption.
- High-efficiency dual motor with one-key switch between manual and electric modes.
- Intelligent electromagnetic brake system for safe stopping.
- Durable, removable lithium battery: standard 24V12Ah; optional 24V20Ah.
- High-elastic memory-foam back cushion for ergonomic comfort.
- Aviation aluminum-alloy frame rated for 120 kg; optional customizable colors.
Technical parameters
- Model: MFN803A / MFN803B / MFN803C / MFN803D / MFN803E / MFN803F
- Front wheel diameter: 8 inches
- Rear wheel diameter: 12 inches
- Seat (W×D×H): 460 mm × 420 mm × 510 mm
- Product dimensions (W×D×H): 1040 × 630 × 980 mm
- Max speed: 4.5 km/h
- Range: Standard 12–15 km; Optional 20–25 km
- Climbing ability: 6°
- Loading capacity: 120 kg
- Fold mode: MFN803A: Manual; MFN803B: Electric; MFN803C: Manual; MFN803D: Electric; MFN803E: Electric; MFN803F: Manual
- Back reclining mode: MFN803A: /; MFN803B: /; MFN803C: Manual; MFN803D: Manual; MFN803E: Electric; MFN803F: Electric
- Back reclining angle (applicable models): 100–135°
- Battery: Lithium battery, standard 24V12Ah; optional 24V20Ah
- Power supply: AC100–240V, 50/60Hz
- Net weight (A→F): 29 / 30 / 29 / 31 / 33 / 30 kg
- Gross weight (A→F): 35 / 37 / 37 / 39 / 41 / 38 kg
Accessories
- Standard: Adjustable headrest
- Optional: Honeycomb rear wheel, adjustable headrest, leg-lift device, cup holder, umbrella stand
Ordering information
Brand: BIOBASE; Origin: China; Delivery time: Within 7 days; Supply: Factory direct supply.
