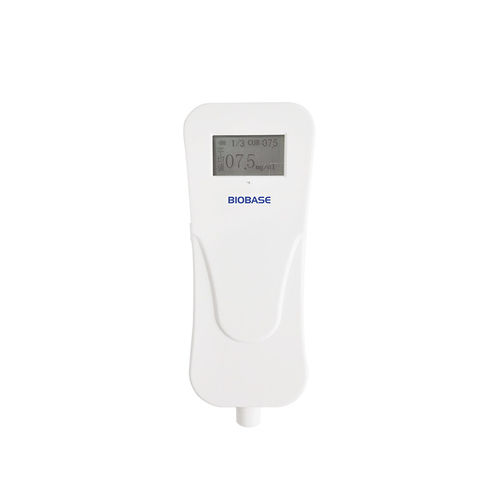

Jaundice meter BY-D-І

BY-D-І Jaundice Meter adopts advanced fiber technology, optical technology, electronics and information processing technology, the light and electricity organically combined for dynamically monitoring neonatal serum bilirubin percutaneous value. The device can measure percutaneous bilirubin value related to serum bilirubin concentration through neonatal skin by rapid noninvasive determination, eliminating the pain caused by repeated blood samples to neonates, but also reducing difficulties of medical staff to collect blood samples. Technical Parameters: Measuring Method Light reflection Light Source Xenon flash Display LCD Measuring Range 0.0~29.9mg/dl(0.0～425μmol/L) Indication Error 00~15±1(mg/dl) ; 16~25±1.5(mg/dl) Measuring Accuracy RSD＜2% Battery 4 Triple A rechargeable nickel-metal hydride batteries Measuring Times 800 times after each full charge Measuring Units Mg/dl; μmol/L Measuring Averages 2~5 sets Calibration Plate White screen 00.0 or 00.1mg/dl Yellow screen 20.0 ± 1 mg/dl Working Temp 10~30℃ Working Relative Humidity ≤80% Working Atmospheric Pressure 75Kpa~106 Kpa Power Supply Input: AC220V 50Hz; Output: DC6.0V 0.5A External Size (W*D*H) 175*68*26mm Package Size (W*D*H) 275*135*235 (carton box) Net Weight (kg) 0.157(including batteries) 0.11(without battery) Gross Weight(kg) 1.33
