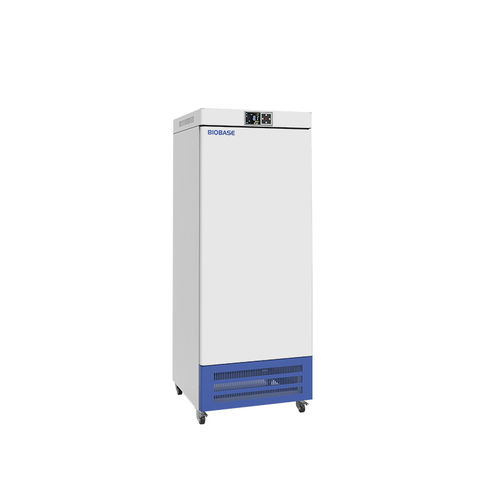

BOD laboratory incubator BJPX-I series

for bacteriologyfor general purposesfor microbiology

Application
Cooling incubator is intended for laboratory and production uses including environmental monitoring, public health, epidemic prevention, agricultural livestock, aquaculture, BOD water analysis, microbial culture and preservation (bacteria, mold), plant cultivation and breeding tests.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BJPX-I-80L BJPX-I-200L BJPX-I-250L BJPX-I-300L BJPX-I-400L

Features

• Microcomputer PID controller for precise temperature regulation with LCD display.
• Exterior: powder-coated steel panels; interior chamber: 304 stainless steel with rounded corners for easy cleaning.
• Double-door design with tempered glass inner door for specimen observation.
• Built-in internal power socket to supply small instruments (e.g., BOD testers, shakers).
• Power-failure protection, over-temperature alarm and parameter memory; automatic resume after power restoration.
• Universal casters for mobility.
• Uses environmentally friendly refrigerant R290.

Technical Parameters (table)
Model | BJPX-I-80L | BJPX-I-200L | BJPX-I-250L | BJPX-I-300L | BJPX-I-400L
Capacity | 80L | 200L | 250L | 300L | 400L
Display | LCD display
Temp. Control Range | -10~65℃
Temp. Fluctuation | Heating: ±0.5℃; Cooling: ±1℃
Temp. Uniformity | ±1.5℃ (@37℃)
Timing Range | 0~9999 min
Refrigerant | R290
Shelf (standard) | 2
Standard Accessory | Shelves, power socket
Optional Accessory | RS485, RS232, USB, miniprinter
Consumption | BJPX-I-80L: 1500W; BJPX-I-200L: 1800W; BJPX-I-250L: 2000W; BJPX-I-300L: 2200W; BJPX-I-400L: 2200W
Power Supply | AC220V, 50Hz (standard); 110V, 60Hz (optional, external transformer)
Internal Size (W*D*H) | 400*370*560mm (80L); 450*450*1000mm (200L); 480*490*1070mm (250L); 520*500*1170mm (300L); 580*540*1270mm (400L)
External Size (W*D*H) | 540*580*1100mm (80L); 590*660*1530mm (200L); 620*700*1600mm (250L); 660*700*1700mm (300L); 720*760*1800mm (400L)
Package Size (W*D*H) | 680*730*1290mm (80L); 730*800*1720mm (200L); 760*850*1790mm (250L); 800*850*1890mm (300L); 860*900*1990mm (400L)
Net Weight | 65kg (80L); 110kg (200L); 120kg (250L); 115kg (300L); 150kg (400L)
Gross Weight | 85kg (80L); 130kg (200L); 140kg (250L); 150kg (300L); 170kg (400L)

Characteristics / technical specifications

• Model series: BJPX-I
• Available capacities: 80L, 200L, 250L, 300L, 400L
• Temperature range: -10℃ to 65℃
• Control: Microcomputer PID with LCD display
• Accuracy / stability: Heating ±0.5℃; Cooling ±1℃; Uniformity ±1.5℃ (@37℃)
• Refrigerant: R290 (environmentally friendly)
• Standard accessories: 2 shelves, internal power socket
• Optional accessories: RS485, RS232, USB, miniprinter
• Timer range: 0–9999 minutes
• Power supply: AC220V 50Hz standard (110V 60Hz optional)
