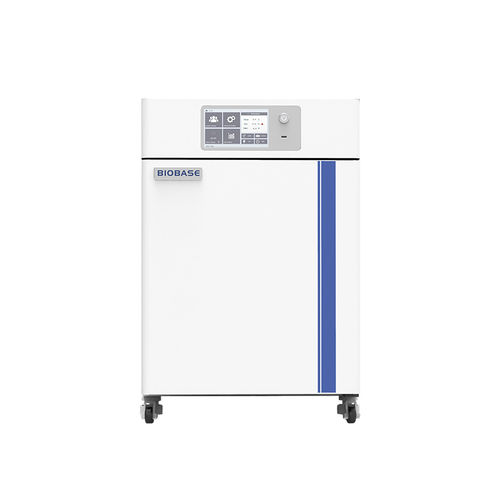

Carbon dioxide laboratory incubator BJPX-C series

CO2infraredfor scientific research

Product overview
CO2 incubators for controlled temperature and CO2 environments designed for cell culture, research and clinical laboratory use. Models cover air-jacket and water-jacket configurations with capacities of 50, 80 and 160 L.

Product information
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory direct supply
Models: BJPX-C50 | BJPX-C80 | BJPX-C160 | BJPX-C80S | BJPX-C160S

Key features

• CO2 control via IR infrared sensor using dual-channel, dual-filter infrared technology (calibration certificate provided).
• Available in air-jacket (BJPX-C50/C80/C160) and water-jacket (BJPX-C80S/C160S) configurations; water-jacket models include water tank and water-level alarms.
• Inner chamber: 304 stainless steel — brushed finish with fully rounded corners (water-jacket) or mirror finish with semi-rounded corners (air-jacket) for cleaning and corrosion resistance.
• Electrical protections: leakage current and over-voltage protectors; over-temperature alarm; water-jacket models additionally feature under-temperature, over-concentration and under-concentration CO2 alarms.
• Integrated UV sterilization and filtration: CO2 gas filter standard; HEPA filter included for water-jacket models.

Technical parameters
Model: BJPX-C50 | BJPX-C80 | BJPX-C160 | BJPX-C80S | BJPX-C160S
Type: Air jacket (BJPX-C50/C80/C160) | Water jacket (BJPX-C80S/C160S)
Sterilization type: UV sterilization
Capacity: 50 L | 80 L | 160 L | 80 L | 160 L
Temperature sensor: PT100
Temperature range: RT +5 ~ 60℃
Temperature fluctuation: ±0.3℃ (@37℃)
Temperature uniformity: ±0.5℃ (@37℃)
Temperature precision: 0.1℃
Timing range: 0 ~ 999 h or continuous
Display: 7-inch touch screen
CO2 control: IR infrared sensor (with calibration certificate)
CO2 range: 0 ~ 20 vol%
CO2 uniformity: 0.2 vol%
CO2 control resolution: 0.1 vol%
Ambient temp & humidity: 5 ~ 30℃ (recommendation 25±2℃); ambient humidity ≤ 80%
Filter: CO2 gas filter (air-jacket models); CO2 gas filter + HEPA filter (water-jacket models)
Power supply: AC220V, 50/60Hz (standard); 110V optional. Wiring: plug
Power consumption: 310W | 600W | 1000W | 1300W | 1400W
Shelves: 2 pcs, adjustable (standard)
Standard accessories: shelves, USB interface, CO2 relief valve, CO2 gas filter (air-jacket); plus water tank and HEPA filter for water-jacket models
Optional accessories: water pump, three-way connector
Internal size (W*D*H): 337*338*443 mm | 377*410*524 mm | 477*473*711 mm | 428*412*522 mm | 528*512*722 mm
External size (W*D*H): 500*527*821 mm | 600*596*921 mm | 700*666*1101 mm | 647*593*1070 mm | 747*694*1260 mm
Package size (W*D*H): 655*685*985 mm | 735*735*1080 mm | 795*835*1270 mm | 725*780*1225 mm | 877*840*1460 mm
Net weight: 48 kg | 62 kg | 88 kg | 125 kg (depending on model)
Gross weight: 70 kg | 82 kg | 110 kg | 108 kg | 145 kg

Accessories & options

• Standard: adjustable shelves, USB interface, CO2 relief valve, CO2 gas filter; water-jacket models include water tank and HEPA filter.
• Optional: external water pump, three-way connector for water circulation.

Applications

• Cell culture and tissue culture in research laboratories.
• Pharmaceutical and biotech R&D.
• Clinical and hospital laboratories for controlled incubation tasks.
