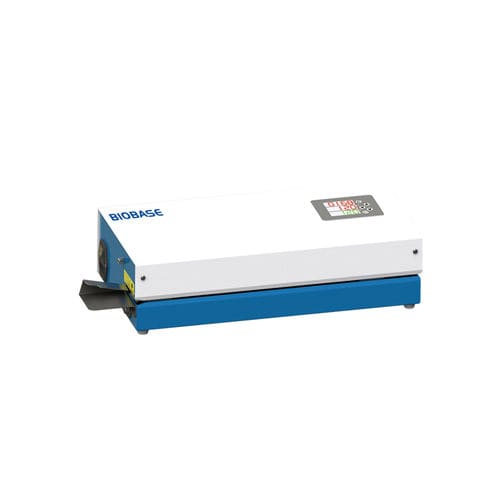

Medical sealer MS100-L

automaticfor medical packagingbenchtop

Introduction
The Automatic Medical Sealer MS100-L is engineered to provide consistent and secure sealing for medical packaging. It is suitable for paper-plastic bags, 3D paper-plastic bags and paper-paper bags used in clinical and sterile supply workflows.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Model: MS100-L

Features

• Automatic control function for continuous operation as replacement of manual sealing.
• Microcomputer temperature controller with ±1% accuracy, operating range 60–220 °C.
• Fast heating: approximately 40 seconds from room temperature to 180 °C.
• Adjustable fixed-force system suitable for paper-plastic, 3D paper-plastic and paper-paper bags.
• Flat ceramic heating elements for temperature stability, long service life and efficient heat transfer.

Technical parameters
Model: MS100-L
Seal speed: 10 m/min
Seal width: 12 mm
Seal margin: 0–35 mm adjustable
Display: LED screen
Machine shell material: Spray carbon steel (standard) or 304 stainless steel (optional)
Power consumption: 500 W
Power supply: AC110/220V ±10%, 50/60 Hz
External size (W×D×H): 490×240×120 mm
Packing size (W×D×H): 600×380×260 mm
Gross weight: 11/12 kg

• Model: MS100-L
• Seal speed: 10 m/min
• Seal width: 12 mm
• Seal margin: 0–35 mm (adjustable)
• Temperature control: Microcomputer controller, ±1% accuracy, 60–220 °C
• Heating time: ~40 s to reach 180 °C from room temperature
• Display: LED screen
• Shell material: Spray carbon steel (standard) or optional 304 stainless steel
• Power consumption: 500 W
• Power supply: AC110/220V ±10%, 50/60 Hz
• External dimensions: 490 × 240 × 120 mm
• Packing dimensions: 600 × 380 × 260 mm
• Gross weight: 11–12 kg
