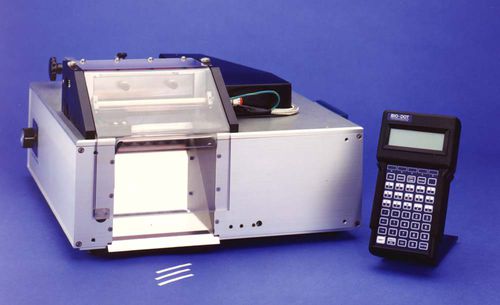

Diagnostic material cutting module CM4000

The CM4000 Guillotine Cutter is a robust, fully automatic workstation that provides high quality precision cuts. Blades are made from hardened steel, and specially coated to improve ejection of cut strips and reduce glue build up. Cut widths and quantities are easily programmed through its handheld terminal. Programs may be stored for system reference in either development or manufacturing environments. Product Description Product Features Cost Efficient – Friction-fed mini rollers eliminate unnecessary waste of the master strip User Friendly – Simple handheld operation – Safety interlock device – Easy blade cleaning Flexible – Adjustable material guides – Various blade speeds Product Options – Leading Edge Sensor – Target Sensor (requires Leading Edge Sensor) – Anti-Static General Specifications Dimensions – 41 x 43 x 23 cm (16 x 17 x 9 in) Weight – 24 kg (53 lbs) Power Requirements – 110/220 VAC; 50/60 Hz, 6A Materials – Standard strip width: up to 100 mm – Distance from capstan to blade: 20 mm
