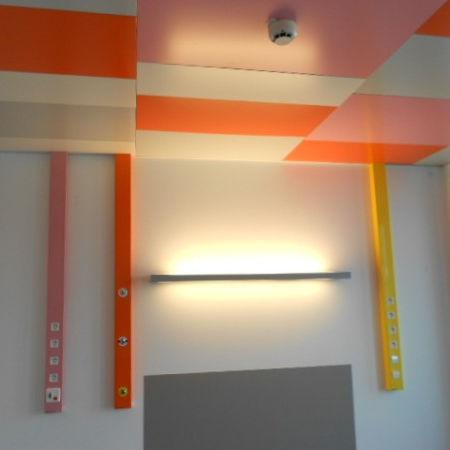

Medical supply unit BT 2.0

wall-mountedmodularwith shelves

TECHNICAL UNIT BT 2.0 TYPE The BT 2.0 modular technical unit is made of aluminium profile (245 mm x 74 mm) white epoxy painted with 3 compartments and 2 covers. This profile allows the integration of numerous lv and elv sockets, nurse call systems in addition of medical gases outlets. Full modular surface components mounting or flush (without finger plates). Most voluminous unit (total capacity of 196 cm3 / lm). TECHNICAL UNIT BC TYPE BC technical unit is made of aluminium profile (140 mm x 85 mm) white epoxy or grey colour epoxy paint. Lots of components integration thanks to its large size. This BC unit can be used either for electrical or medical gases. It can also be mounted in addition to the BT and BC units. TECHNICAL UNIT BM TYPE BM unit is made of aluminium profile (102 mm x 60 mm) white epoxy or grey epoxy paint for gas integration. Tailor made (with supports and ventilation) or by lengths of 2, 3 or 4 meters with cover . TECHNICAL UNIT BKX – BKR TYPES The modular BKX technical unit is made of raw aluminium extruded profiles with 3 segregated compartments and separated covers in addition of the rounded shape covers. Rubber top stripe for better hygiene. Modular technical unit offering various possibilities : rounded profile can be replaced by a rail (BKR system) placed on upper and/or lower part (Biomedical equipment use on 25 x 10 mm rail). An extra individual aluminium rail (BR 250) can be also wall mounted in addition for the use of a sliding carrier with shelves. Other possible configurations : BKXR, BKXRR, BKRR
