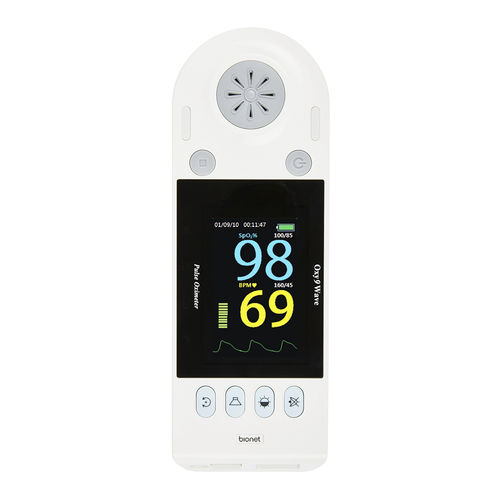

Hand-held pulse oximeter Oxy9Wave

medicalbattery-poweredwith separate sensor

Simple, Fast acquisition 3.5″ Color LCD for clear view Large memory : up to 30 days in 10 secs Perfusion index indication User-Convenience Vertical & horizontal display of measurement value Intuitive operation SpO2, BPM, Pulse parameter display Description Overview 3.5″ LCD with numeric & waveform display Enhanced memory capacity : up to 30 days in 10 sec interval Vertical display Perfusion index indication IV-pole mounting with pole clamp holder Specification Dimension 75 x 210 x 45 mm Weight Approx. 0.3Kg Power AC 100-240V (50/60Hz), Adapter 5V, 2.0 A Power consumption 24VA (max) Display 3.5” Color TFT-LCD screen Resolution 320 X 480 pixels Displayed Data SpO₂, Pulse rate, Perfusion index, Level Bar, Pulse rate Wave, Time and Date, Alarm Volume, Battery Status, Brightness LED indicators Sensor Separation, Alarm Silence, Charging Status, Power Connection Parameters SpO2, Pulse rate, PI (Perfusion Index) Interfaces - DC input connector : 5V, 2.0A USB digital output for transferring data Data Storage SpO2, Pulse rate (30 days at 10 second intervals) Temperature Operation: 5 ~ +40 °C Storage: –20 ~ +70 °C Humidity Operation: 30% ~ 85%, Storage: 5% ~ 95% (Package ) AltitudeOperation: 525 ~ 795 mmHg (70 ~ 106 kPa) Storage: 375 ~ 795 mmHg (50 ~ 106 kPa) Pulse rate accuracy ±2 bpm
