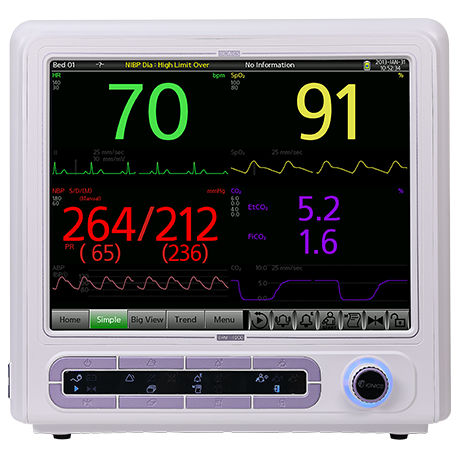

Portable patient monitor BPM-1200

compactECGRESP

Experience the superiority of high-performance monitor, BPM-1200 You can get more and better than anything you have ever tasted before. Details 13 kinds Of Arrhythmia Detect. 1200 of ECG Recall for 20seconds. Unlimited configurations and flexible parameter position at user's command. 30 days of graphic and list trends [mini trend screen]. 120 episodes of alarm event recall for 20 seconds event data & graphic, which can be zoomed to observe and to print out. Easy to upgrade Software by SD Card (Max. 16G). RS-232C interface, VGA Out, Nurse call port. EMR, HL7, Wired & Wire less Central Station. Technical Specifications ECG Channel 3 channels (Std.) / 12 channels EKG (Opt.) Electrode 3 or 5 electrode (10 electrode (Opt.) 3 lead wire l, ll, lll (1 lead at a time) 4 lead wire l, ll, lll, aVR, aVL, aVF (Up to 6leads at a time) 5 lead wire l, ll, lll, aVR, aVL, aVF, V (Up to 7leads at a time) 10 lead wire l, ll, lll, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 (All 12-Ieads of ECG at a time) Filter High frequency no1se remove filter (50/60Hz), Frequency Bandwidth (0.05~80Hz) Gain 2.5, 5, 10, 20, 30, 40, Auto mm/mV Sweep Speed 6.25, 12.5, 25, 50 mm/sec Input signal range 0±0.5mV ~ ±5mV QRS Detect 0.15mV ~ 0.40mV (Manual) Defibrillator Protection 300Joules delivered at 5000Volts Defibrillation Artifact Recovery Time <8s Pacemaker Detection Mode User selectable (PNF, PNC) Arrhythmia Detect [13Detect] TAC, BRD, PVC, VTAC, ASY, BGM, TGM, VENT, VFIB, CPT, TPT, MIB, Ront ST Analysis Rang: -9.9mm ~ +9.9mm / Resolution: 0.1mm (Lead . ECG Channel Select1on same) HR Calculation 4~16 QRS wave RESPIRATION Method Impedance for ECG Lead(selectable) Accuracy +/- 2% or +1- 2bpm
