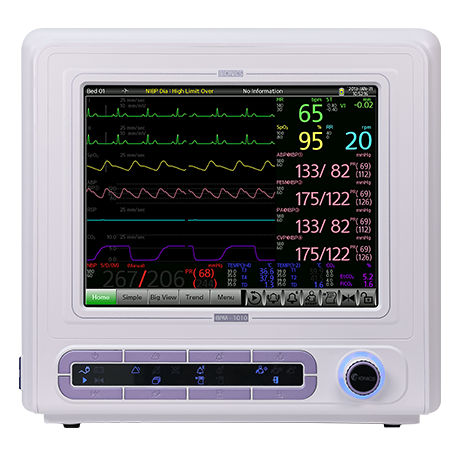

Experience the superiority of high-performance monitor, BPM-1010 You can get more and better than anything you have evertasted before.
Details
Configurable up to 12 waveforms.
13 kinds Of Arrhythmia Detect.
1200 of ECG Recall for 20seconds.
Unlimited configurations and flexible parameterposition at user's command.
30 days of graphic and list trends [mini trend screen].
120 episodes of alarm event recall for 20 seconds event data & graphic,
which can be zoomed to observe and to print out.
Easy to upgrade Software by SD Card [Max. 16G].
RS-232C interface. VGA Out. Nurse call port.
Central Station.
Technical Specifications
DISPLAY
Resolution 8OO(H) X 600(V) SVGA
Trace 6 waveform (Std.) /12 waveform max (Opt.)
ECG
Channel 3 channels (Std.) /12 channels EKG(Opt.)
Electrode 3 or 5 electrode (10 electrode (Opt.)
3 lead wire l, ll, lll (1 lead at a time)
4 lead wire l, ll, lll, aVR, aVL, aVF (Up to 6leads at a time)
5 lead wire l, ll, lll, aVR, aVL, aVF, V (Up to 7leads at a time)
10 lead wire
l, ll, lll, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 (All 12-Ieads of ECG at a time)
Filter
High frequency noise remove filter (50/60Hz),
Frequency Bandwidth (0 05~80Hz)
Gain 2.5, 5, 10, 20, 30, 40, Auto mm/mV
Sweep Speed 6.25, 12.5, 25, 50 mm/sec
Input signal range 0±0.5mV ~ ±5mV
QRS Detect
0.15mV ~ 0.40mV (Manual)
Defibrillator Protection
300Joules delivered at 5000Volts
Defibrillation Artifact Recovery Time <8s
Pacemaker Detection Mode User selectable (PNF, PNC)
Arrhythmia Detect [13Detect] TAC, BRD, PVC, VTAC, ASY, BGM, TGM, VENT, VFIB, CPT, TPT, MIB, Ront
ST Analysis Rang: -9.9mm ~ +9.9mm / Resolution: 0.1mm (Lead : ECG Channel Selection same)
HR Calculation 4~16 QRS wave
