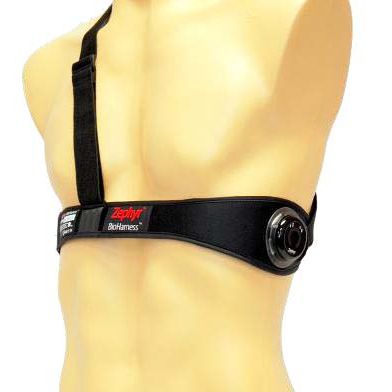

BioHarness™ with AcqKnowledge® software is a state-of-the-art lightweight portable biological data logger and telemetry system. It monitors, analyzes and records a variety of physiological parameters including ECG, respiration, posture, and acceleration. BioHarness applications include physiology, psychology, psychophysiology, exercise physiology, ergonomics, human factors, and more.
INTUITIVE, ELEGANT ACQKNOWLEDGE SOFTWARE
Powerful automated analysis for ECG, HRV, EEG, EMG, EGG, and many more. Instantly & easily view, measure, analyze, and transform data.
IDEAL FOR EXPERIMENTS WITH MULTIPLE SUBJECTS, HIGH ACTIVITY
Wireless functionality, small form factor. Color-coded displays, monitoring of up to 50 subjects.
EASY SETUP, COMFORTABLE FOR SUBJECTS
Unobtrusive; fabric-based, dry contacts—no skin breakdown. Washable.
The BioHarness operates in Bluetooth transmitting mode for live viewing of data or data logging mode. In the data logging mode, the BioHarness logs the data for later download to the AcqKnowledgeTM software using the USB docking and charging cradle that comes with the system. A specially-licensed version of AcqKnowledge is included and required when used with BioHarness.
BIOHARNESS DATA CHANNELS
ECG – Raw
Breathing
RR Interval
Heart Rate
Respiration Rate
Posture
Vector Magnitude
Peak Acceleration
Breathing Wave Amplitude
X axis acceleration min
X axis acceleration peak
Y axis acceleration min
Y axis acceleration peak
Z axis acceleration peak
Z axis acceleration min
Live data viewing features include a variety of selectable waveforms and trend data including
ECG
Heart Rate
RR values
Respiration
Tri-axial accelermeter (X, Y & Z)
Activity level
