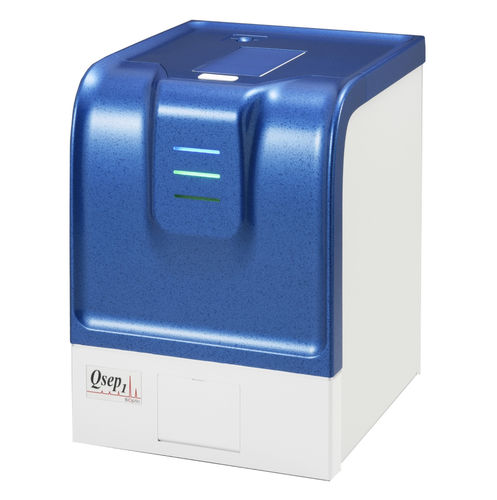

Capillary electrophoresis system Qsep1

for DNAfor RNAfor proteins

- The smallest/portable-sized capillary electrophoresis Bio-Fragment Analyzer for DNA, RNA and protein. - Qsep1 is ideal for small laboratories with low throughput (1~8 samples) needs. - The system supports Wi-Fi and cable connections, breaking the barriers of space. - 10+ types of cartridges can be easily exchanged between various applications. - The provided quantitative method delivers fragment size and concentration information in one run. Qsep1 is an automated Bio-Fragment Analyzer for DNA, RNA and protein fragments. Advantages of capillary electrophoresis are high resolution (1~4bp if less than 500bp), high sensitivity (5pg/μl) and significantly faster preparation and analysis time. Besides analyzing fragment sizes and concentrations, it is also suitable for quality control of next-generation sequencing (NGS). Qsep1 is equipped with completed hardware and software and has fully functional remote access via cable/Wi-Fi. The system provides various kinds of applications such as RNA quality control with RNA Quality Number (RQN) provided, auto-distribution of NGS QC and quality control of gDNA with DNA Quality Number (DQN) provided. Qsep1 is a top choice for modern small laboratory. Qsep series can not only replace the complicated and time-consuming gel preparation and analysis procedure, but increase the accuracy of analysis, elevate efficiency and reproducibility, and reduce the human error and costs.
