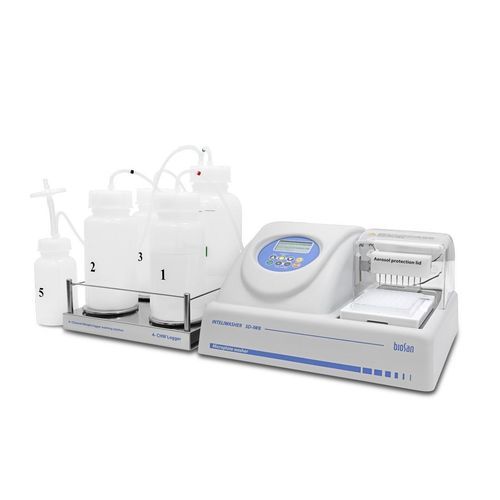

Automated microplate washer 3D-IW8

laboratoryfor researchELISA test

Inteliwasher 3D-IW8 series microplate washer is designed for washing various types of standard 96-well microtitre plates, microstrips as well as microarrays on FastFRAME (rectangular well shape). It is suitable for washing wells with different bottom shapes: flat, U-shape and V-shape. The unit is fully programmable ensuring multi-step solution ripening, aspiration (aspiration, combination of aspiration/liquid dispensing and soaking, as well as soaking cycle during a particular period of time). Dispense system of liquid dosage for each channel separately. The unit provides: Washing mode Rinsing mode Mixing mode Single point, two point, circular (circle or rectangular path) aspiration Possibility of additional solution mixing during time gap between two work cycles Possibility to use microtest plates by different manufacturers, ensured by automated plate set up (adjusting to different depths of plate wells) Round-bottom plate and strip washing mode Possibility of user-defined programs with adjustable parameters The unit has 50 programs divided into 5 following aspiration categories (see figure rightward): Type 1 (1.0–1.9) IPF96 U/V is intended for round and V-shape immunoplates, 1 point aspiration. Type 2 (2.0–2.9) IPF96 FLAT-2 is intended for flat-bottom shape immunoplates, 2 point aspiration.
