Calibration analyzer GA-200

carbonoxygencarbon dioxide

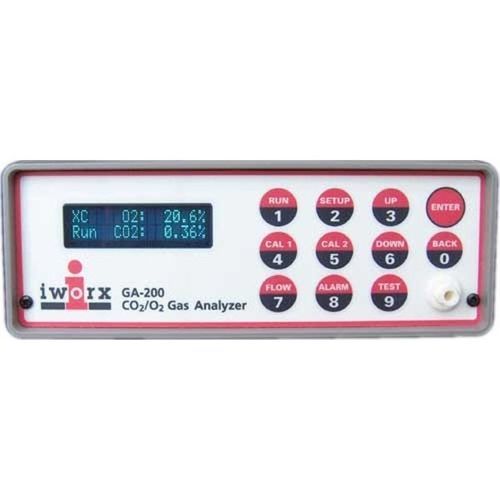

An economical, high performance Oxygen and Carbon Dioxide Analyzer with sampling rates fast enough to measure breath-to-breath samples from an exercising subject Presentation The GA-200 is an analyzer that integrates a gas sampling system with sensors to measure and display the concentrations of oxygen and carbon dioxide in a sample as the percentage of a gas in the sample by volume. This method of expressing the concentration of a gas in a sample is also known as the percent volume fraction. In addition to the sampling and sensing systems in the GA-200, the unit has a fluorescent display used for programming the unit and observing measurements, a keypad for programming the unit’s operation and calibration, and analog outputs that allow the unit to be connected to data recording units like the IX-214. Operating principleWhen measuring the concentrations of oxygen and carbon dioxide in a gas, a sample is pumped from the input port on the front panel of the GA-200, through the sample cell, and out an exhaust port on the back panel of the unit. Gas samples are drawn into the unit through an external filter on the input port that protects the sensors from contamination and through Nafion tubing on the filter that removes moisture from the samples that would affect the measurements and the units calibration. Laser technology The oxygen concentration of the gas in the sample cell is measured using laser diode absorption technology. The laser diode in the oxygen sensor produces light at a wavelength (760 nanometers) that is absorbed by oxygen. The light passes through the gas pumped into the sample cell and onto the surface of a detector.
